Precor AMT Series User Manual

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 255
9 Repeat the process to remove the outside flat belt from the front
arm cam.
Tie Rod Removal
10 Remove the tie rod mounting bolt and washer that secures the upper
tie rod end to the upper arm axle.

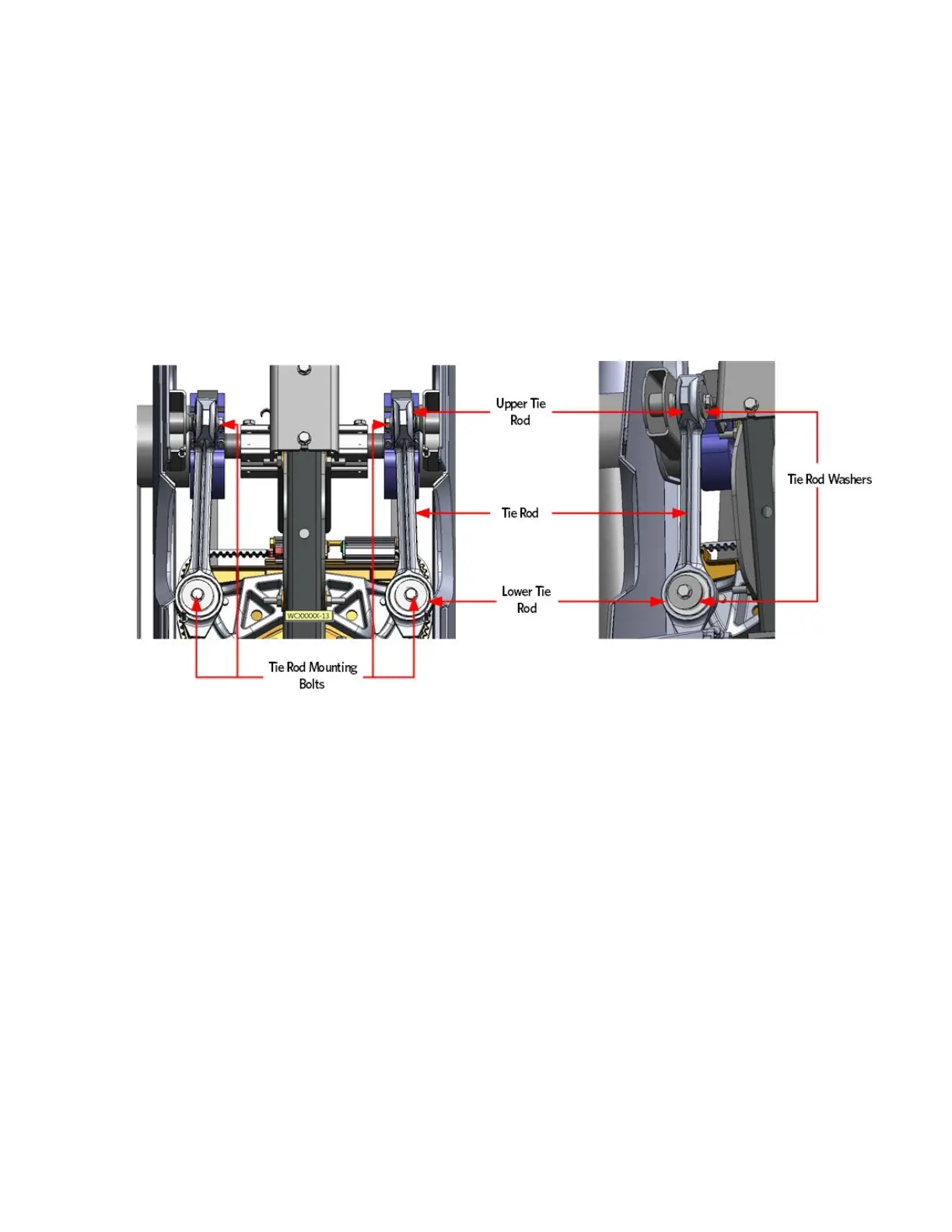

Figure 190: Tie Rods
Front Arm Removal
11 Remove the shoulder bolt that secures the outside cam tube to the
upper arm.
