Precor AMT Series User Manual

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 295

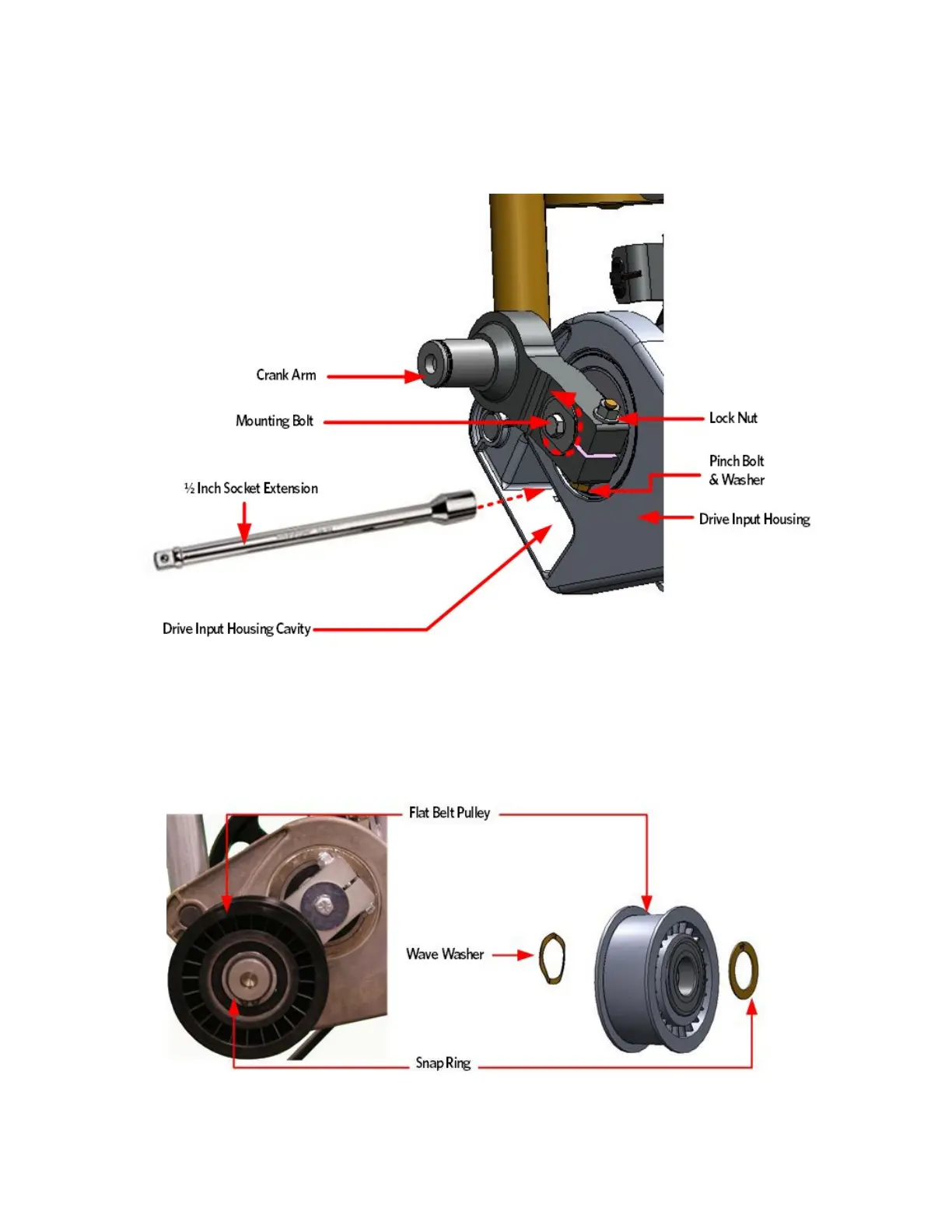

Figure 234: Crank Arm Bolt Removal/ Installation
8 Replace the wave washer and flat belt pulley onto the crank arm
shaft and secure with the snap ring. Make sure the snap ring is
fully seated into the shaft groove.
Figure 235: Crank Arm Flat Belt Pulley
9 Lift the stairarms and thread the flat belts through the pulleys.
