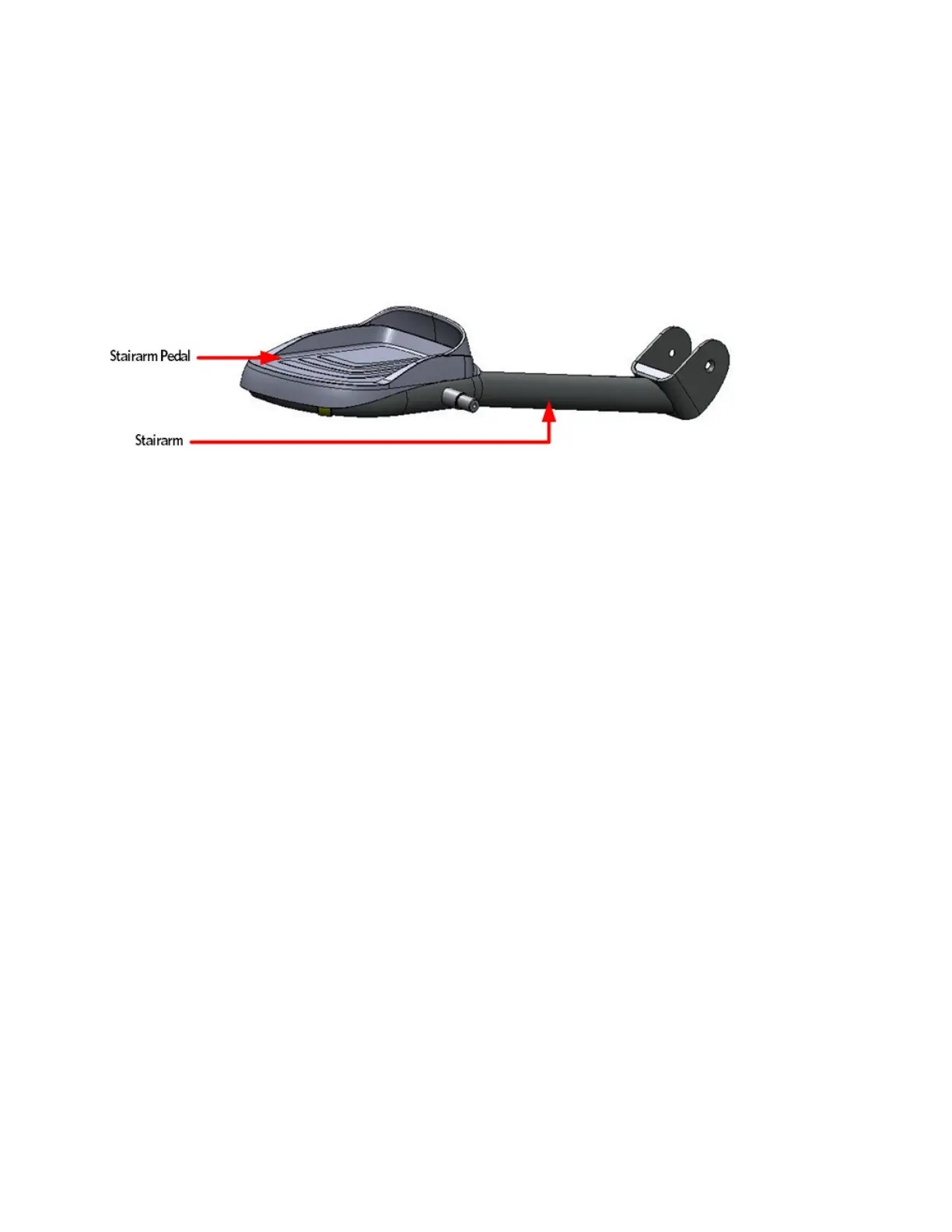

Figure 109: Stairarm and Stairarm Pedal
Stairarm Pedal Replacement Procedure
1 Pivot the stairarm up into a vertical position. Note: The following
procedure will be much more efficient if a assistant holds the
stairarm up.
2 Remove the four screws, washers and washer plate that secure the
stairarm pedal to the stairarm, remove the stairarm pedal.
3 Fasten the replacement stairarm pedal to the stairarm using the four
screws, washers and washer plate removed in step 2.
4 Torque the screws to 15 inch pounds, starting from the single screw
at the end of the stairarm, than screw mounted in the middle,
finally the two rear pedal screws.
