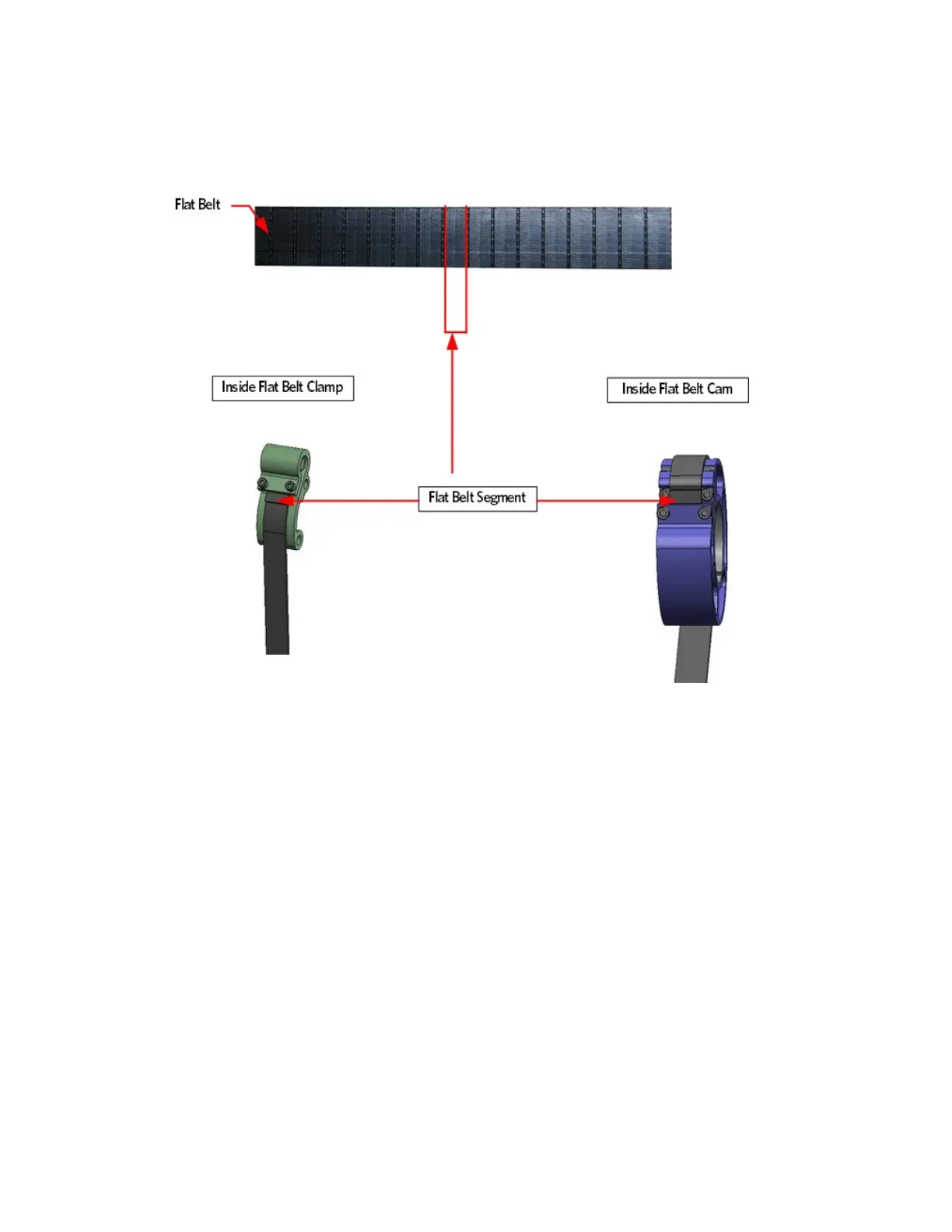

Figure 131: Flat Belt End Alignment
25 If one of the flat belt ends reaches the one segment measurement
before the other end, stop the downward pressure on the stairarm
pedal and tighten the flat belt clamp screws on the flat belt end
that has reached the one segment measurement. Torque to 120 inch
pounds.
26 Resume applying downward pressure to the stairarm pedal until the
remaining flat belt end reaches the one segment measurement. Tighten
the two flat belt screws and torque to 120 inch pounds.
27 Remove the mounting bolts that secure the inside flat belt clamp to
the frame, replace the washers and reinstall the mounting bolts.
Torque to 300 inch pounds (25 ft-lbs).
28 If the flat belt was not re-routed through the pulley's in step 17,
route them at this time.
29 Repeat the procedure for the remaining inside flat belt replacement.
