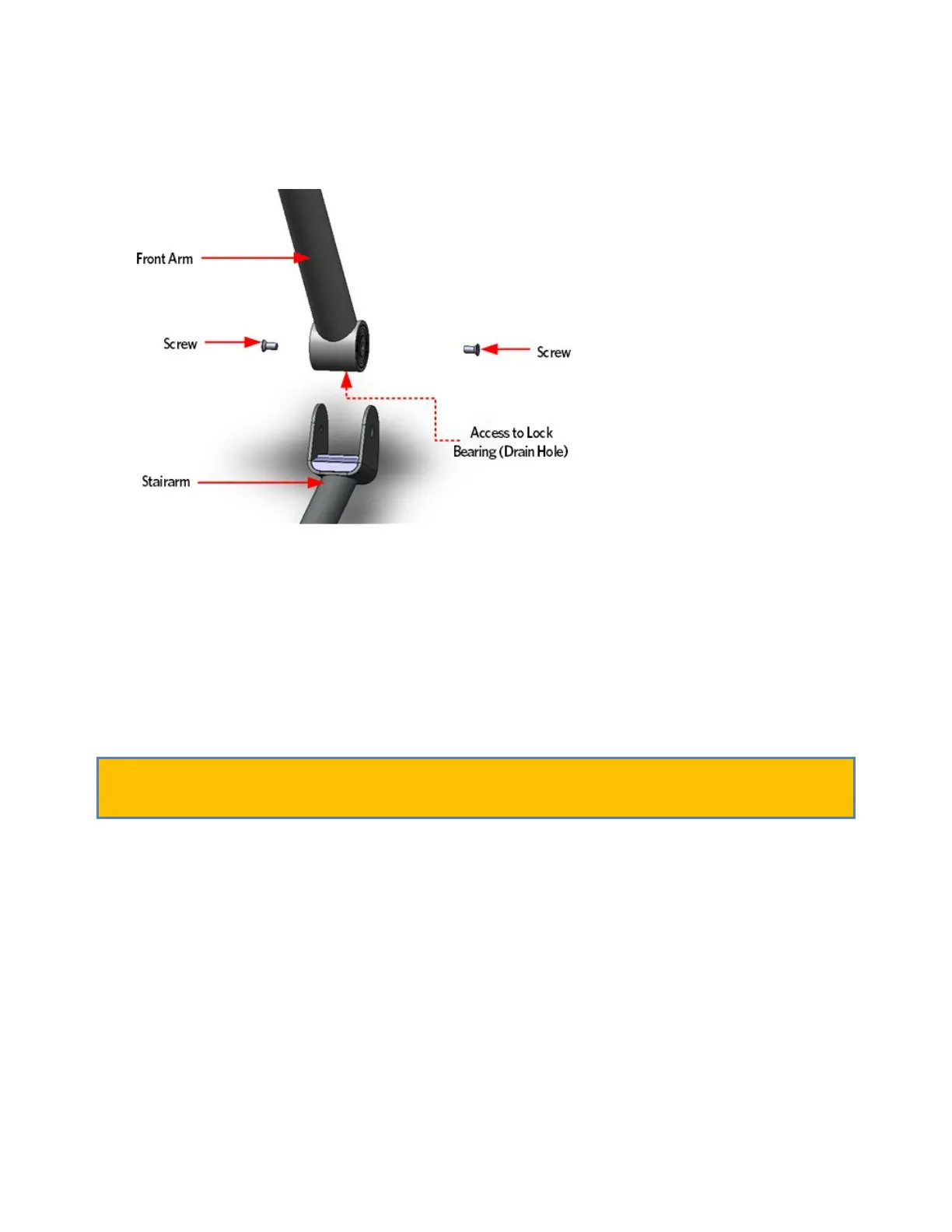

Figure 206: Stairarm and Front Arm Screw Locations
21 Lift the stairarm and then thread the flat belts over the flat belt
pulleys.
22 Replace the upper arm cam covers.
23 Attach the vertical handle bar to the front arm.
24 Replace the main body covers as per procedure, Cover Replacement (on
page 152).
Replacing the Lower Board
WARNING: Before continuing with this procedure, review the Warning and
Caution statements listed in Section One, Things You Should Know.
Removing the Lower PCA Cover
1 Remove the main body covers as per procedure, Cover Replacement
section (see "Cover Replacement" on page 152).
2 There are two interlocking pressure tabs located on each side of the
lower PCA cover, push the two locking tabs outward and pull up the
bottom of the lower PCA cover.
3 Rotate the bottom of the lower PCA cover up until the two hooks of
the cover disengage from the lower PCA bracket.
