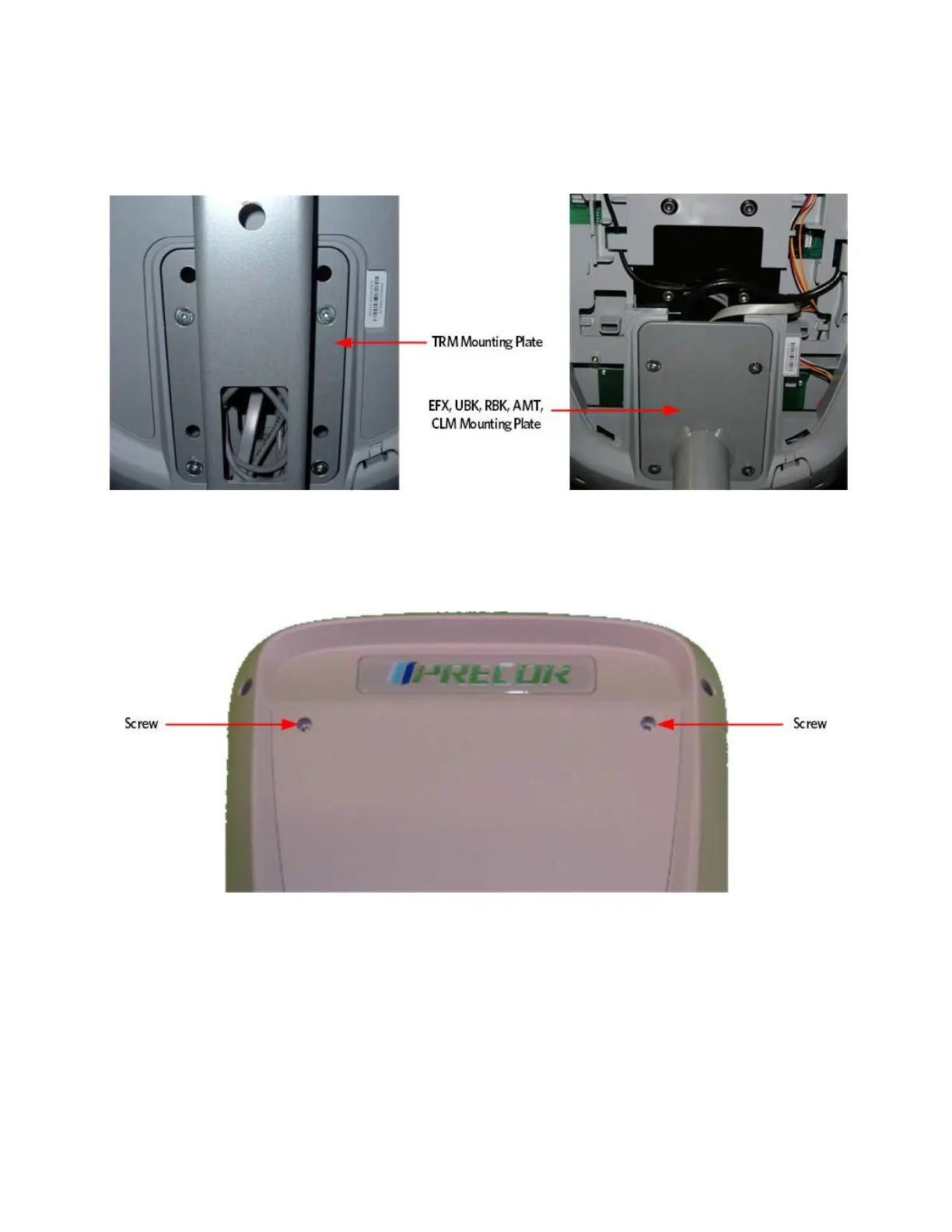

Figure 4: Console Mounting Plate
5 Remove the two screws that fasten the access panel to the console.
Figure 5: Console Access Panel
6 Remove the back access Panel:
a) Treadmills: Lift the console off the maintenance hook and then
position the console so that the back panel is accessible and
remove the back cover.
b) AMT’s, EFX’s, CLM’s, UBK’s, and RBK’s: Tilt the console forward on
the maintenance access hook on the dash weldment and remove the
back.
To Next Page
