Precor AMT Series - Figure 284: Lift Arm Mounting Bolts; Figure 285: Lift Arm Housing and Drive Input Housing

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 334

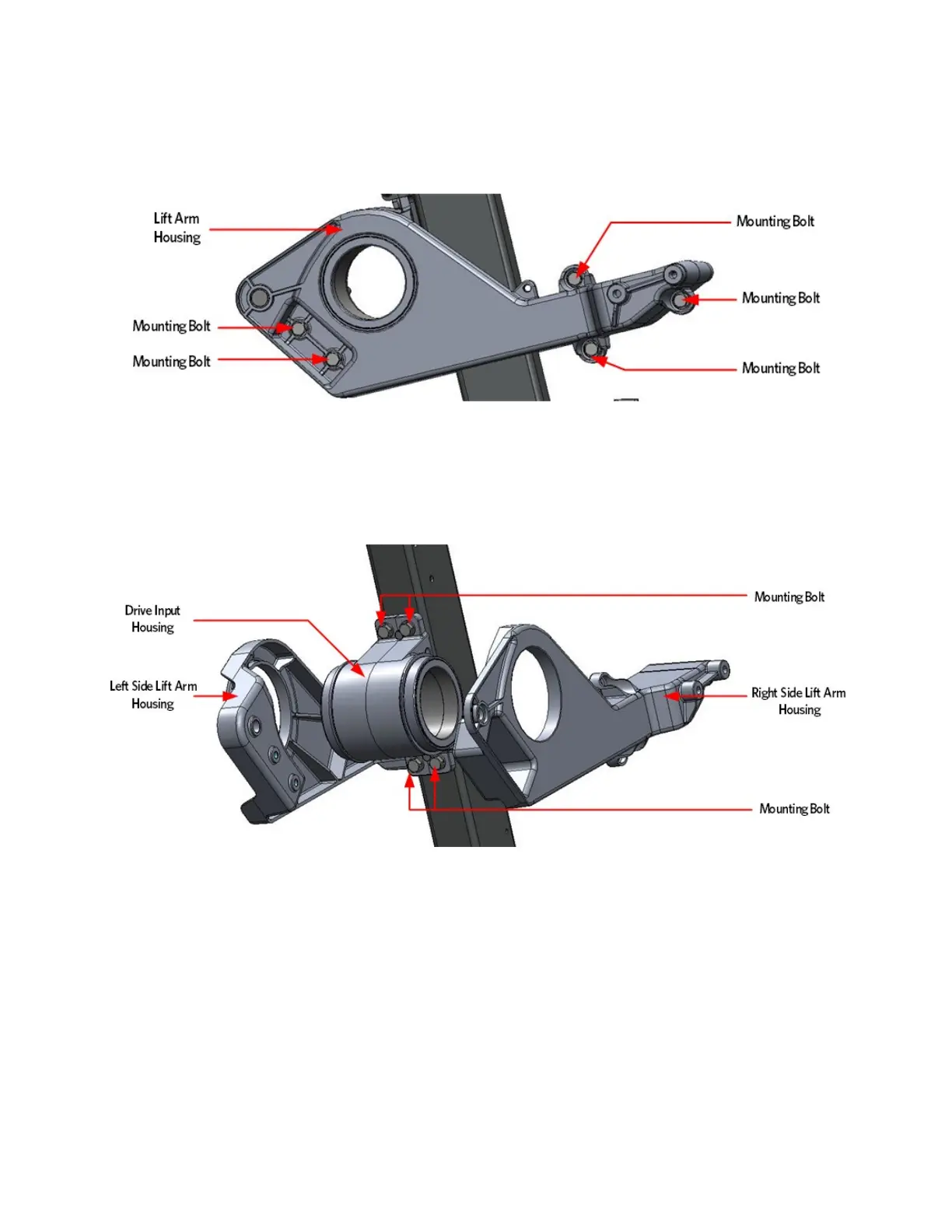

Figure 284: Lift Arm Mounting Bolts
23 Separate the left and right side arm housings from the input
housing.
Figure 285: Lift Arm Housing and Drive Input Housing
24 Remove the 4 mounting bolts that secure the drive input housing to
the frame.
