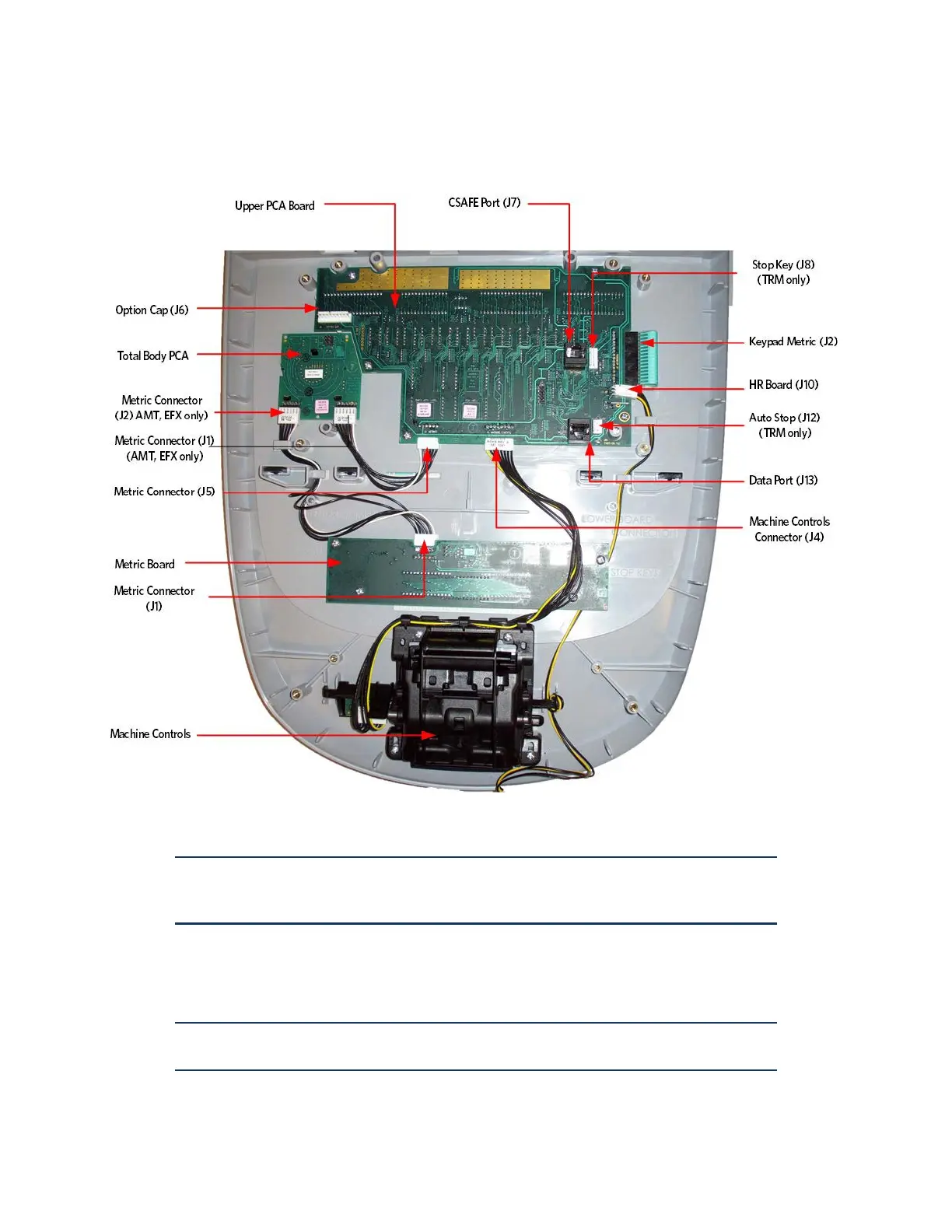

Figure 10: P30 Upper PCA & Metric Board
14 Install the replacement upper PCA into the console using the five
screws removed in step 14. Torque to 10 inch pounds.
Note: Do not use an electric screw driver or over tighten the screws. Over
tightening may damage the console. This type of damage is not covered
under warranty.
15 The white wire in the Metrics cable and the yellow wire in the
Machine Controls and HR cables indicate pin 1. Align the white wire
in the Metrics cable and yellow wires in the Machine Controls and HR
cables with the pin 1 markings on the upper PCA.
Note: If pin 1 is not marked on the Upper PCA refer to the pin 1 reference
below.
