© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

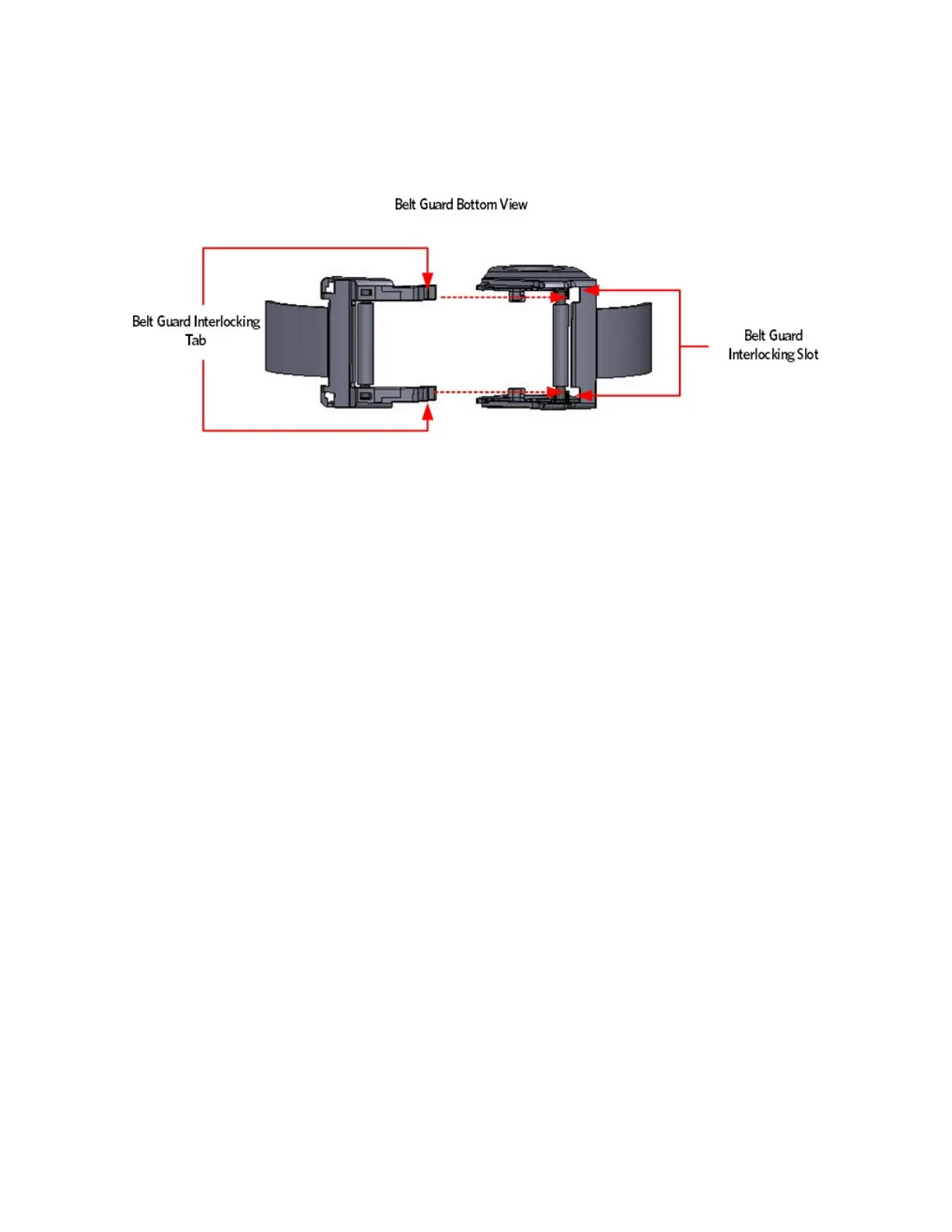

Figure 94: Belt Guard Interlocking Tabs and Slots
13 Grasp each belt guard mounting ring, lift the belt guard into
position over the upper arm mounting bolts, and then secure each
mounting ring to the connection ring.
14 Replace the upper arm covers as per procedure, Upper Arm Cover
Replacement (on page 161).
Replacing a Flat Belt Terminal
Flat Belt Terminal Replacement Procedure
Rear Flat Belt Terminal Cover Removal
1 Remove the two #10-24 X 1.25 screws that secure the flat belt
terminal covers to the flat belt terminal, remove the outside
terminal cover.
2 Rotate the top of the inside terminal cover down until it is below
the stairarm pedal, pull to remove.
3 Repeat the process for the remaining rear flat belt terminal cover.
