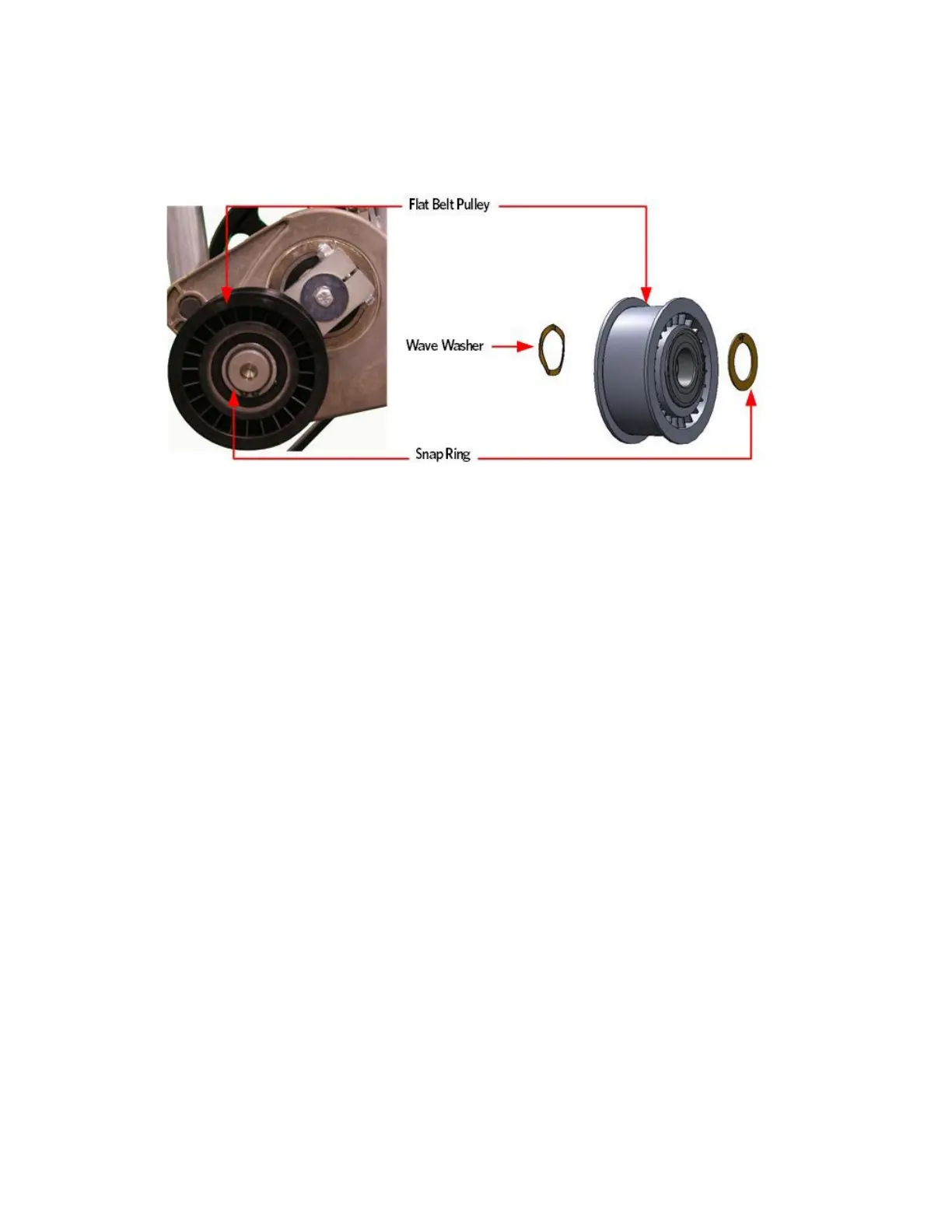

Figure 238: Crank Arm Flat Belt Pulley
9 Loosen the crank arm pinch bolt, washer and lock nut.
10 To loosen the crank arm mounting bolt, insert a socket extension
about twelve inches long or equivalent in the drive input housing
cavity, just below the crank arm to prevent rotation Remove the
crank arm bolt, washer and crank arm. It may be necessary to use a
Pitman arm puller or a 4 to 6 inch gear puller to remove the crank
arm. Do not use a hammer or mallet to remove the crank arm.
