4 Fasten the replacement upper tie rod end to the upper arm axle using
the bolt and washer removed in step 3, torque the bolt to 300 inch
pounds (25 ft-lbs).
5 Fasten the replacement lower tie rod end to the cam assembly using
the bolts and washer removed in step 2, torque the bolt to 300 inch
pounds (25 ft-lbs).
6 Replace the covers as described per procedure, Cover Replacement (on
page 152).

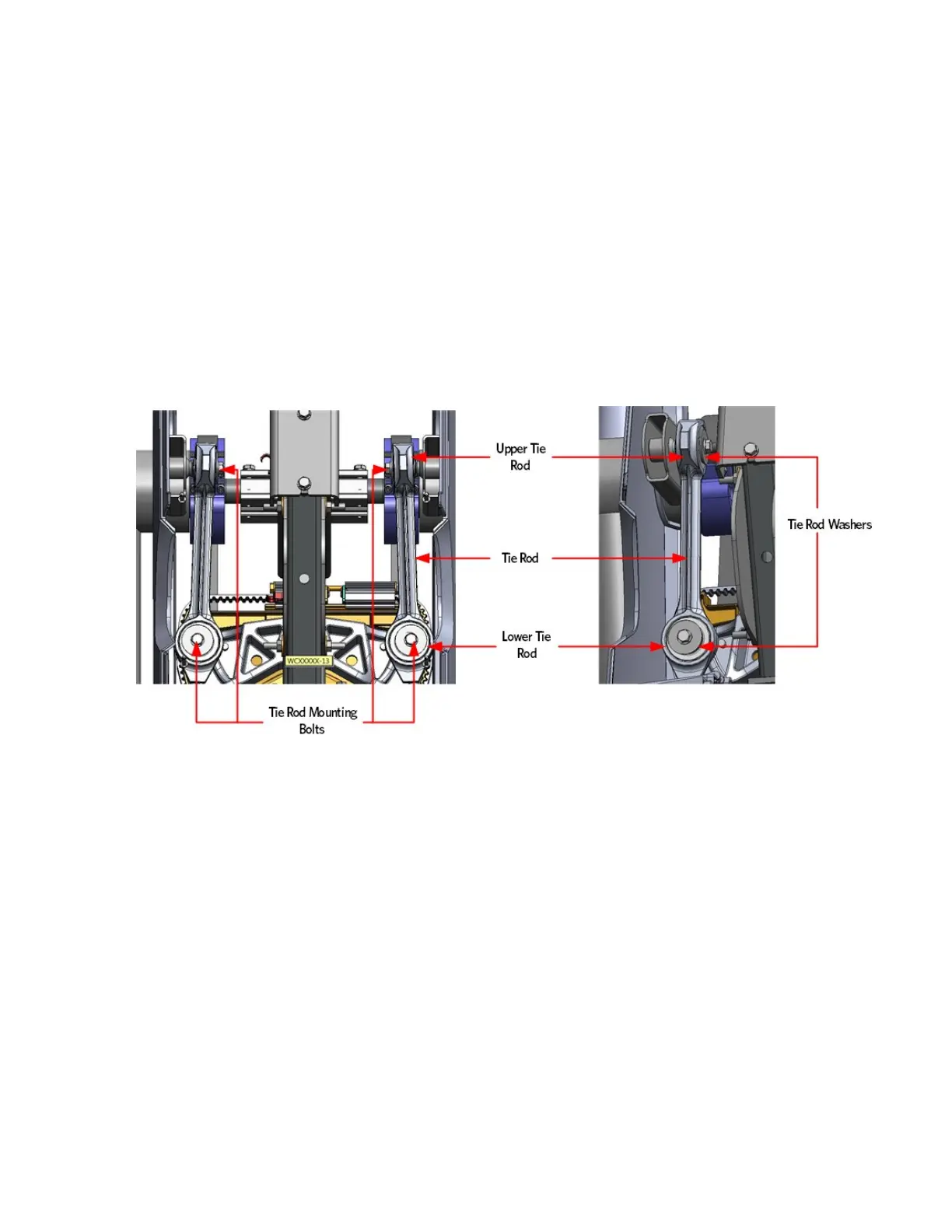

Figure 300: Tie Rods
Replacing the Stride Dial Sensor
Procedure
1 Remove the covers as described per procedure, Cover Replacement (on
page 152).
Stride Dial Removal
2 Disconnect the stride dial cable connector from the stride dial PCA.
3 Remove the two screws that secure the stride bracket to the frame
and then remove the stride dial assembly.
