Precor AMT Series - Figure 132: Upper Arm Covers; Outside Flat Belt Replacement

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 208
Outside Flat Belt Replacement
Upper Arm Cover Removal

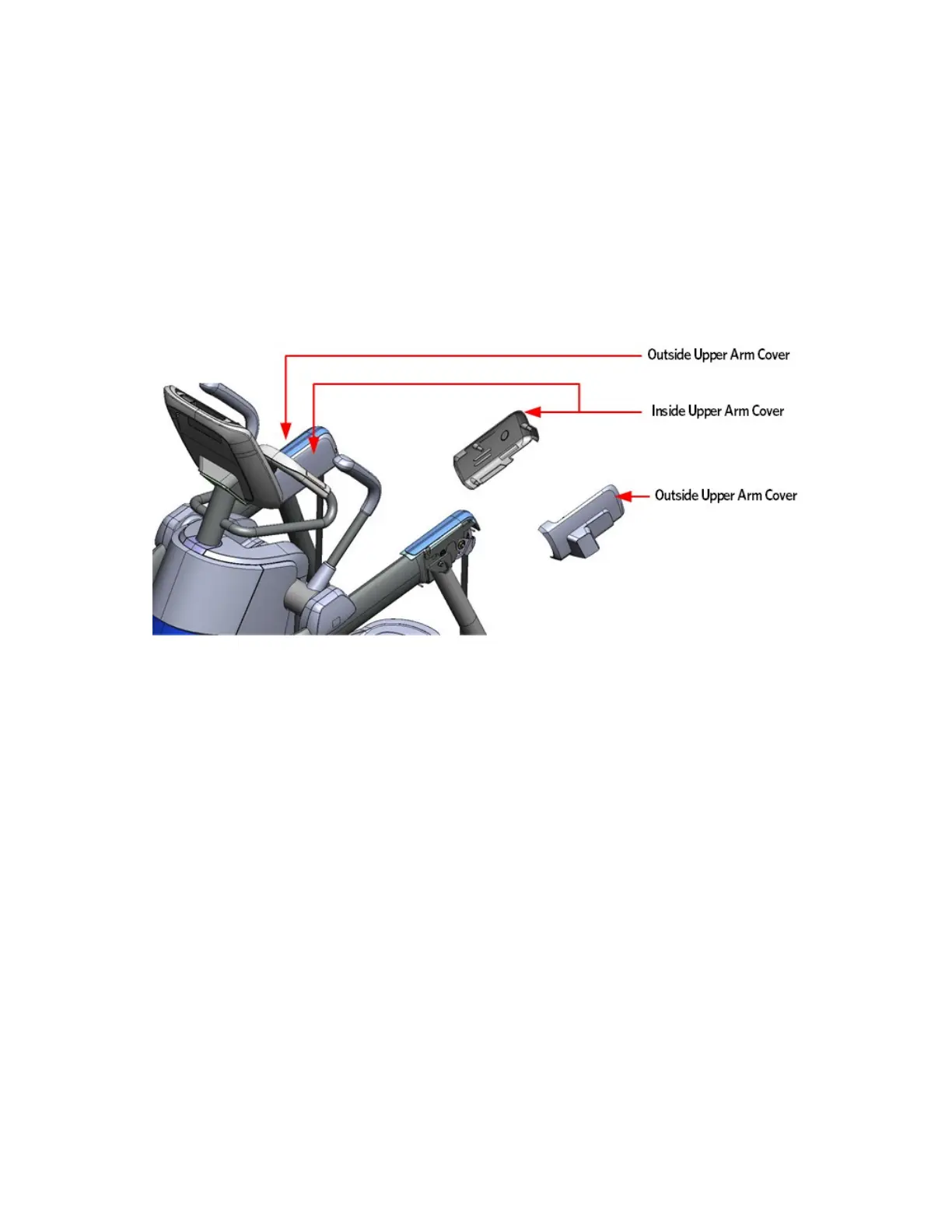

Figure 132: Upper Arm Covers
1 Remove the four screws that fasten the inside upper arm covers to
the upper arm.
2 Remove the screw that fasten the outside upper arm covers to the
upper arm.
3 Remove the inside and outside covers from the upper arm.
4 Repeat the process for the remaining upper arm covers.
