Upper Arm Cover Installation
18 Secure the upper arm covers to the arm weldment using the five #10-
24X1.25 screws.

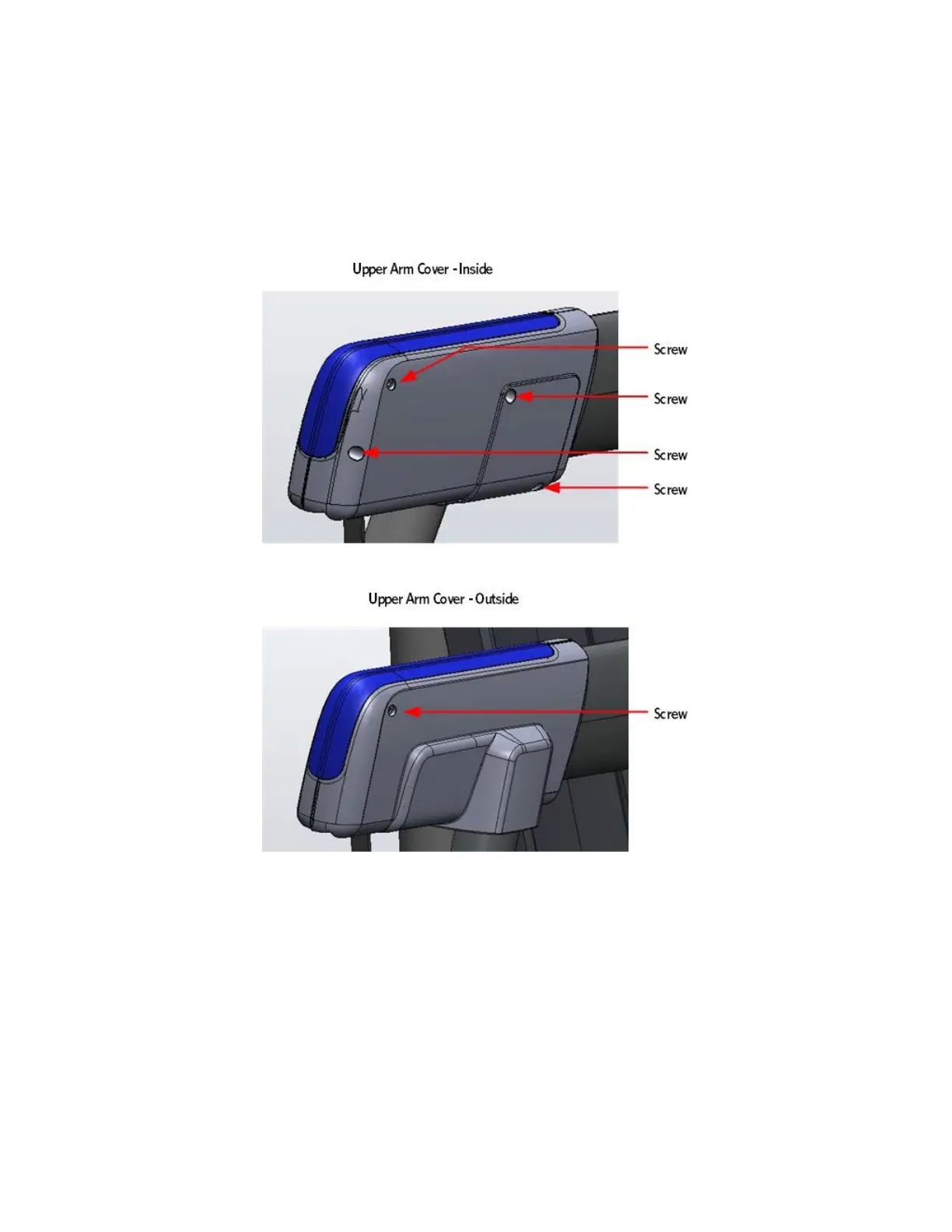

Figure 108: Upper Arm Cover Screw Locations
19 Lift the stairarms and then thread the flat belts over the flat belt
pulleys.
20 Replace the main body covers asp per procedure, Cover Replacement (on
page 152).
Replacing a Stairarm Pedal
