Page 310

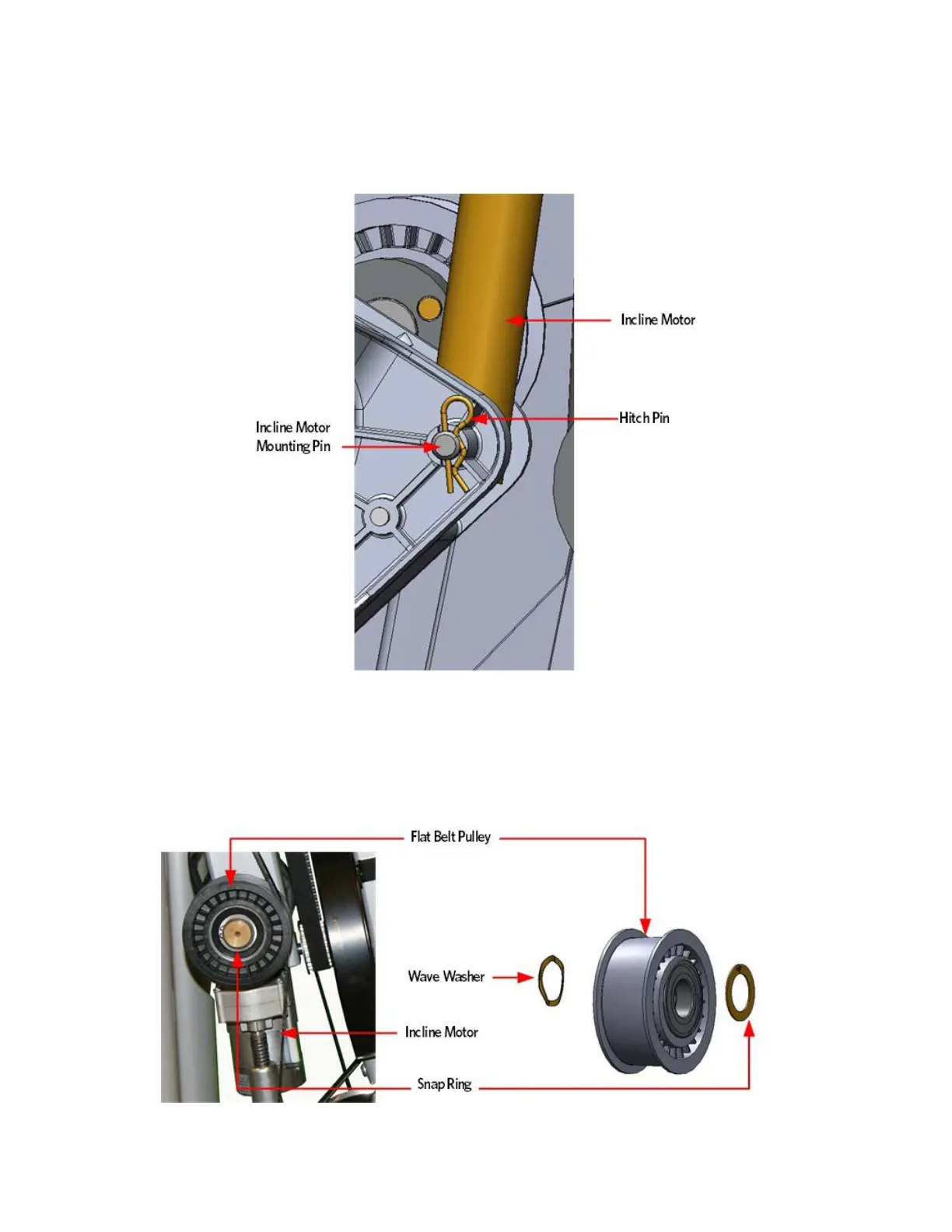

Figure 252: Incline Motor Hitch Pin and Mounting Pin
13 Remove the snap ring from the flat belt pulley shaft located next to
the Incline motor. remove the pulley and wave washer. Removing the
flat belt pulley will allow access to the Incline motor mounting
bolt.
