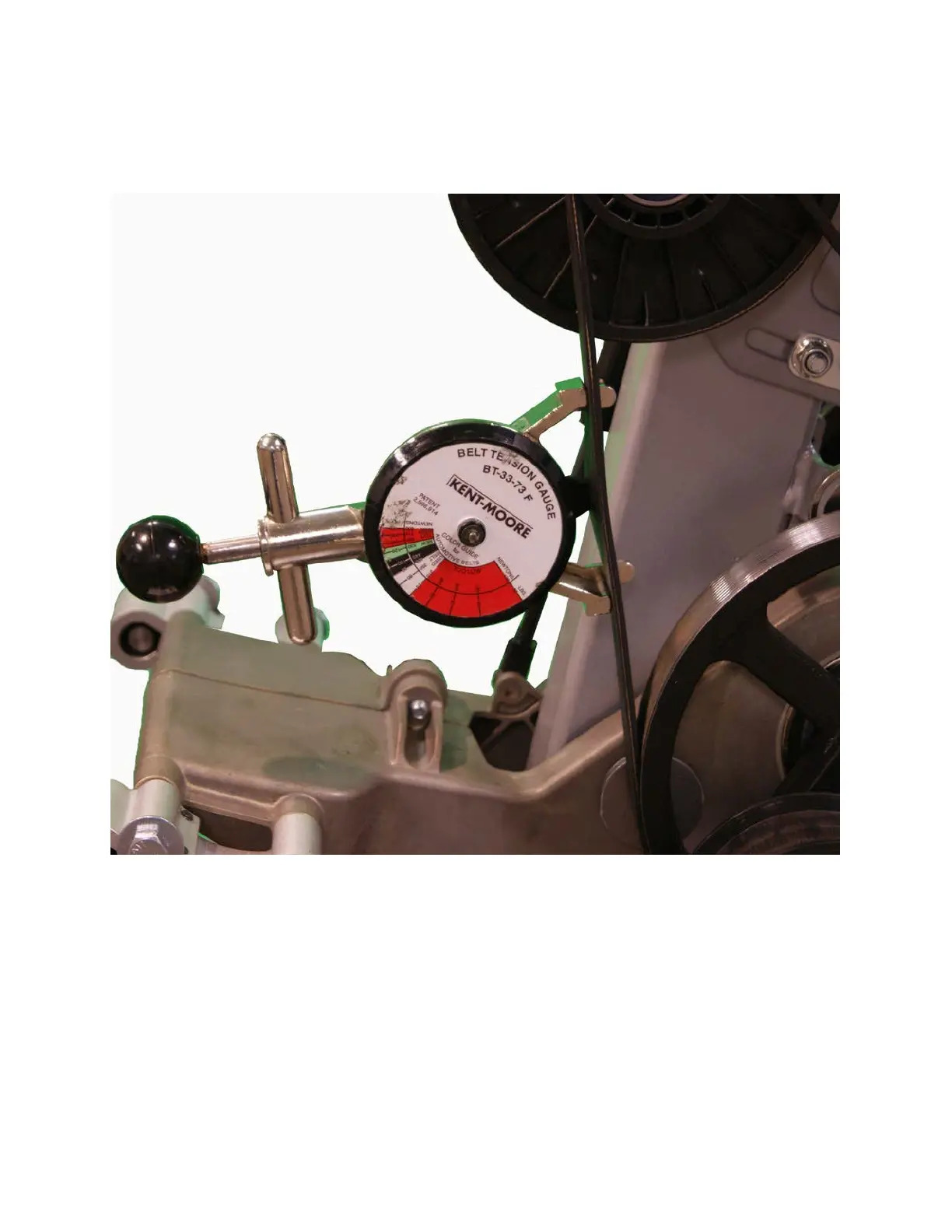

Figure 54: Dive Input Belt
3 The belt gauge should read approximately 135 ±5 lbs. If the belt
tension is significantly high or low the belt tension may be
adjusted by following the steps below.
4 Loosen the generator mounting bolts.
5 Loosen the generator adjustment bolt.
