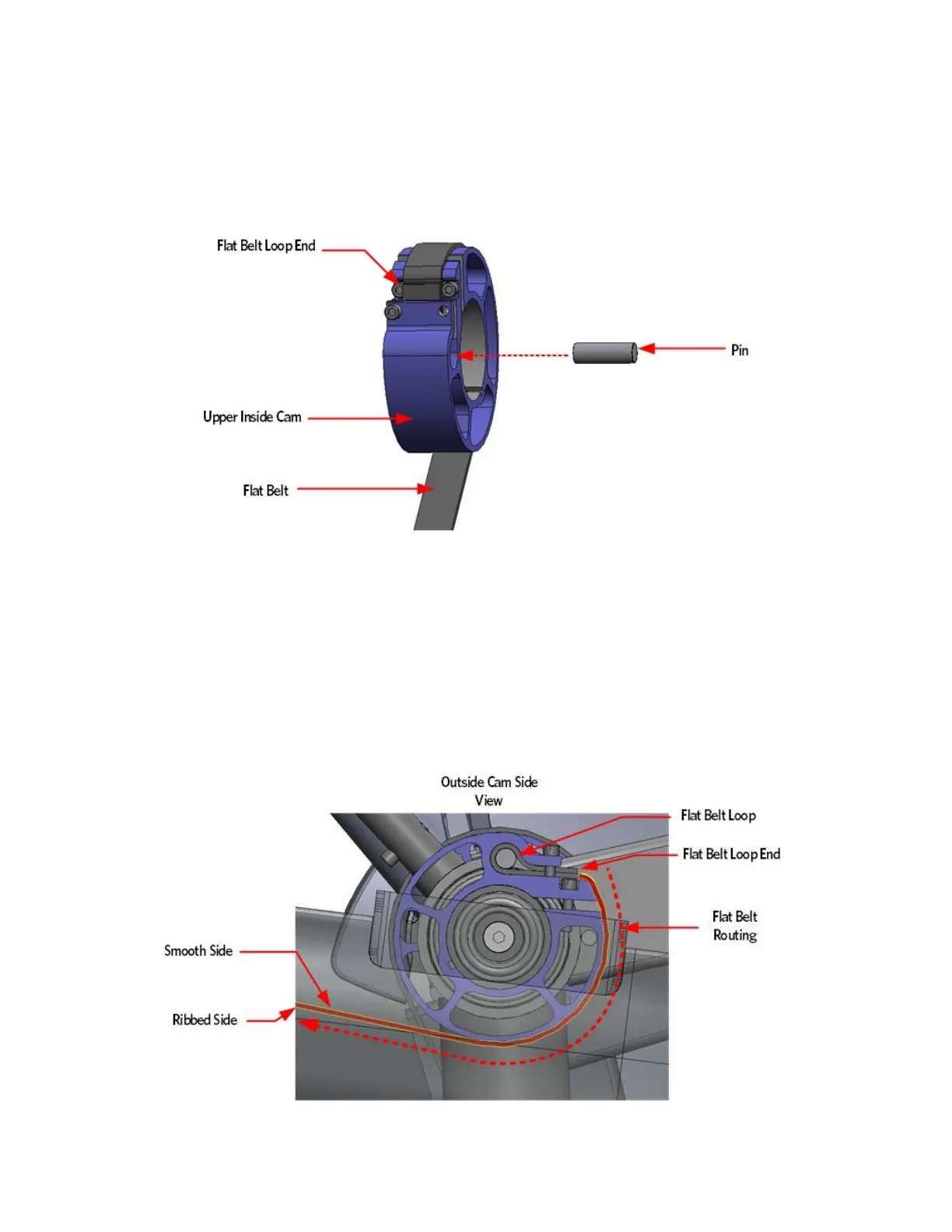

Figure 202: Upper Inside Cam Pin Install
7 Install the second1/4-20X1 screw and shim that secures the flat belt
to the cam, tighten and torque both screws to 120 inch pounds.
8 Thread the outside flat belt so that the belt is routed from under
the cam toward the front of the AMT and then up, ensure the flat
belt loop end is facing up.
Figure 203: Outside Flat belt Routing - Cam
