Page 217

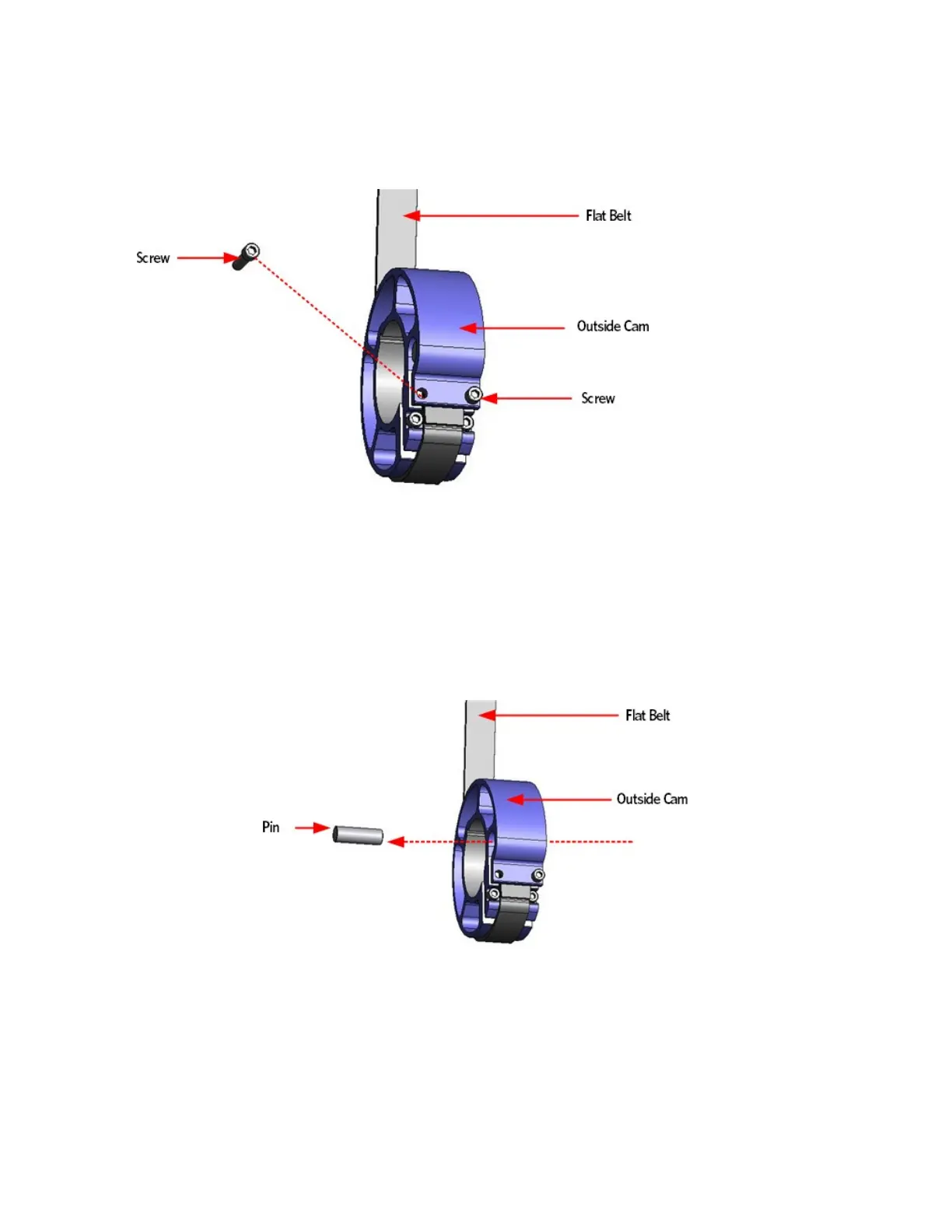

Figure 143: Upper Outside Cam Screw Removal
17 Using a screwdriver, push out the pin from the flat belt loop and
cam clamp and then slide the flat belt out of the cam clamp.
Figure 144: Upper Outside Cam Pin Removal
