Upper Arm Cover Installation
46 Secure the upper arm covers to the arm weldment using the five #10-
24X1.25 screws.

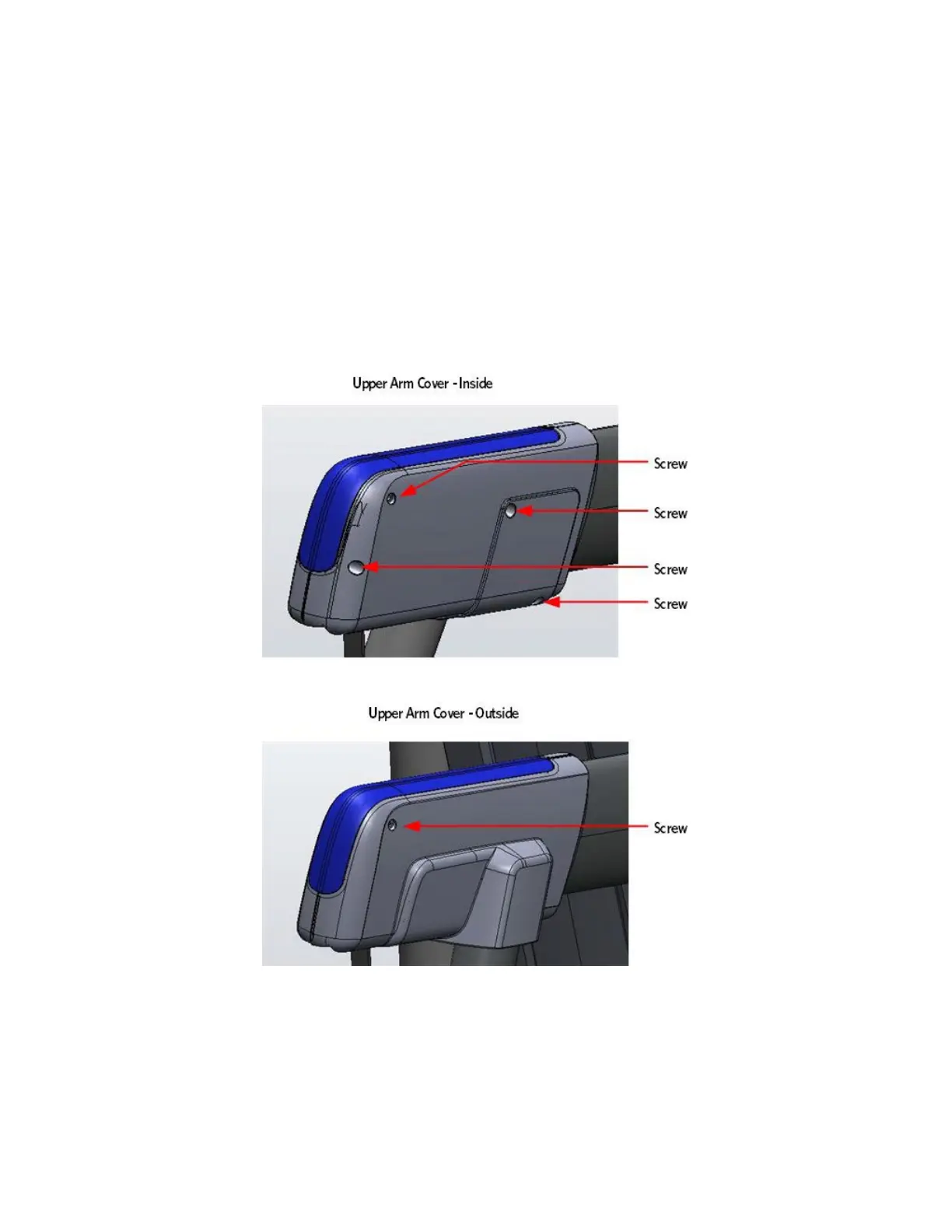

Figure 153: Upper Arm Cover Screw Locations
47 Replace the Upper Arm Cam Covers as per procedure, Upper Arm Cam
Cover Replacement (on page 163).
48 Secure the belt keeper to the frame.
