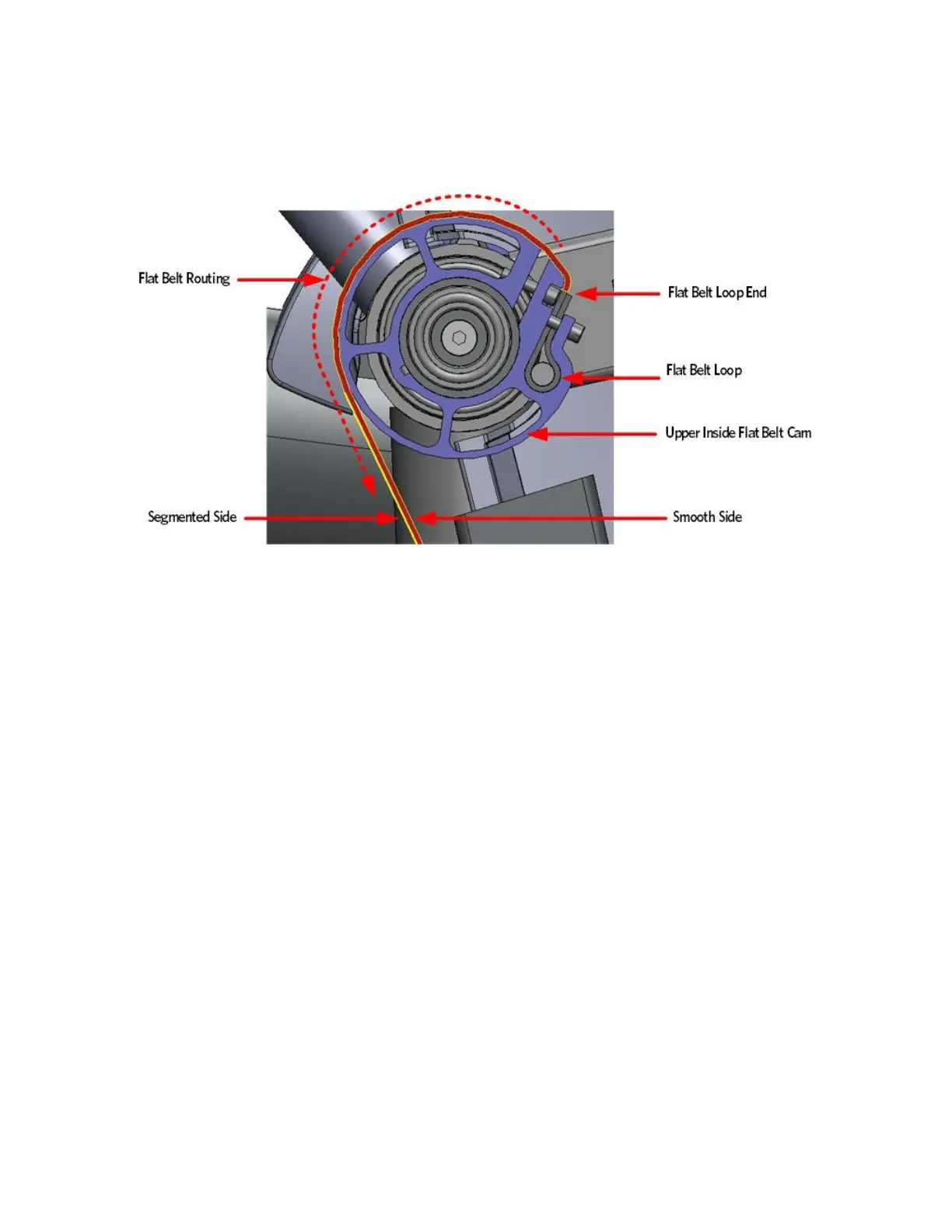

Figure 127: Upper Inside Cam Flat Belt Routing
14 Loop the end of the flat belt back to the 10 inch mark. While
holding the flat belt end on the 10 inch mark, work the loop into
the cam clamp. A 1/2 inch deep set socket can be used to assist in
pushing the belt into place. When the flat belt loop is about half
way into the cam clamp, push the pin into the flat belt loop.
15 Continue to work the flat belt loop and pin into the cam clamp until
the side of the flat belt is resting next to the clamp screw. Ensure
the pin is centered within the cam clamp.
