© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
4 Push the bottom of the side cover in until the tabs of the side
cover rest in the notches on the bottom cover.
5 Repeat the Side Cover Assembly procedure for the right side cover.

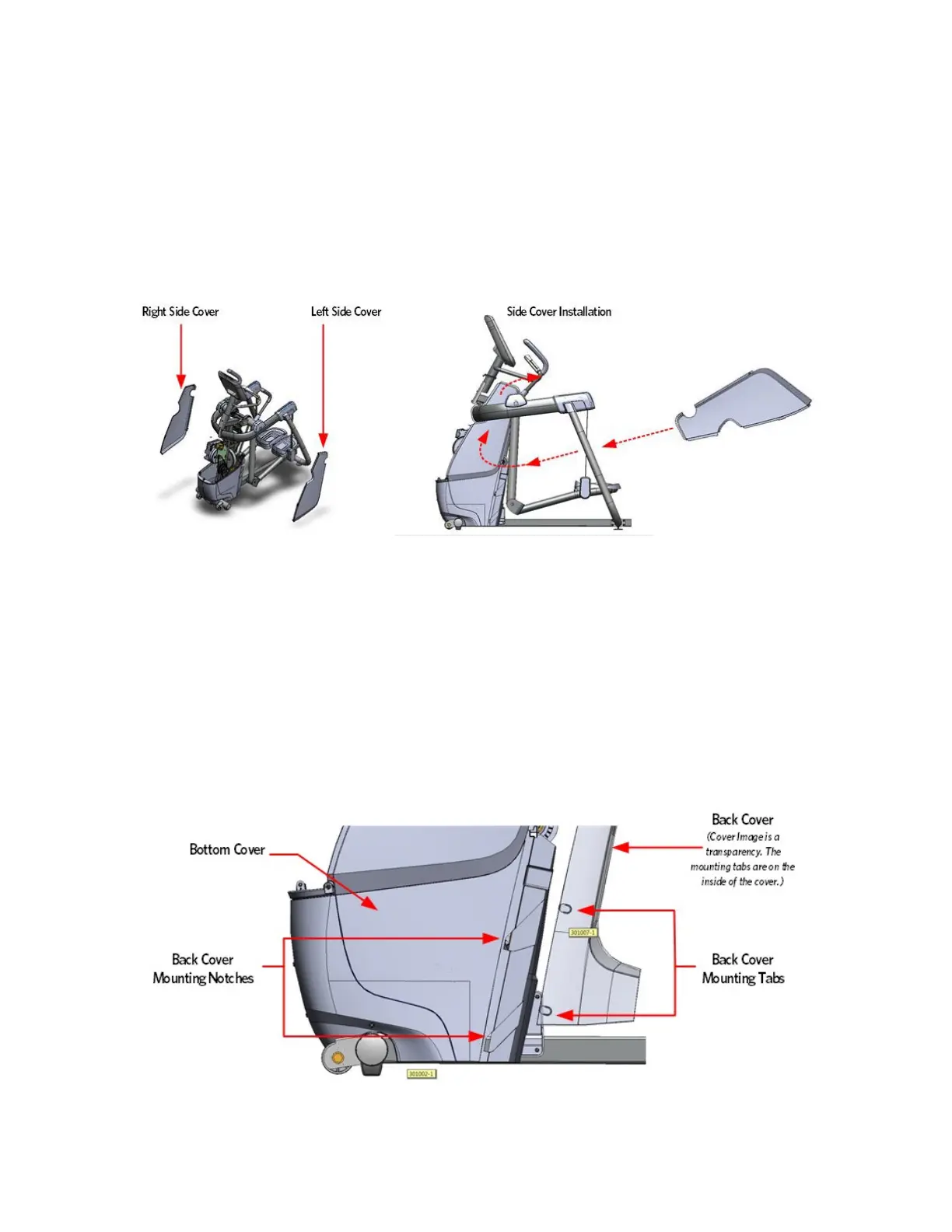

Figure 75: Side Cover Assembly
Back Cover Assembly
1 Hold the back cover up against the frame of the AMT in the
approximate final position.
2 Slide the bottom of the back cover in until the tabs of the back
cover rest in the notches of the bottom covers.
Figure 76: Back and Bottom Cover Assembly
