Precor AMT Series - Figure 258: Drive Input Assembly Alignment; Figure 259: Lift Arm and Belt Clamps

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 314
Figure 258: Drive Input Assembly Alignment
20 Remove the four mounting bolts and washers that secure the flat belt
clamps to the Lift Arm.

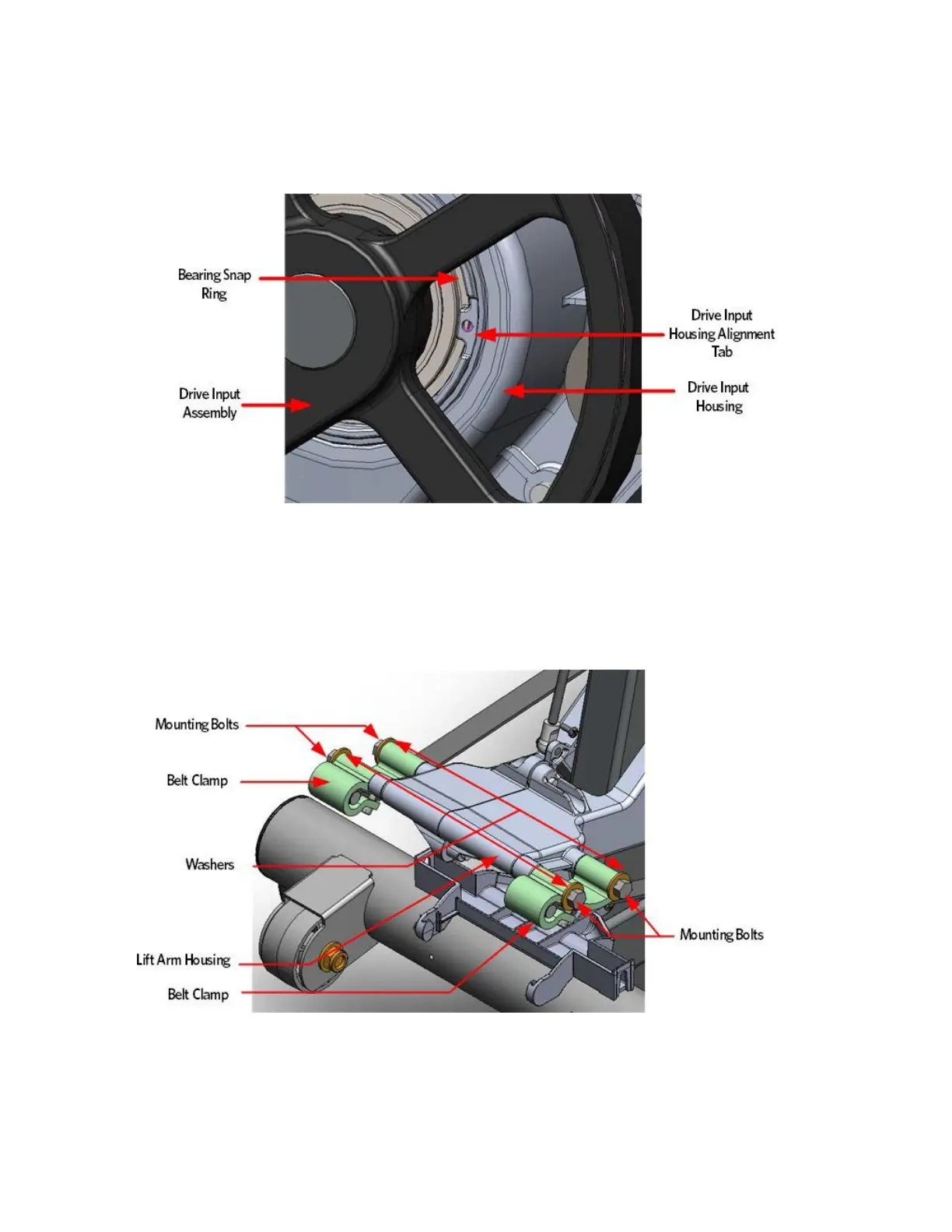

Figure 259: Lift Arm and Belt Clamps
21 Remove the five mounting bolts that secure the left and right side
arm housings to the input housing.
