Figure 282: Drive Input Assembly Alignment
21 Remove the four 3/8-16 X 3 mounting bolts and washers that secure
the flat belt clamps to the Lift Arm.

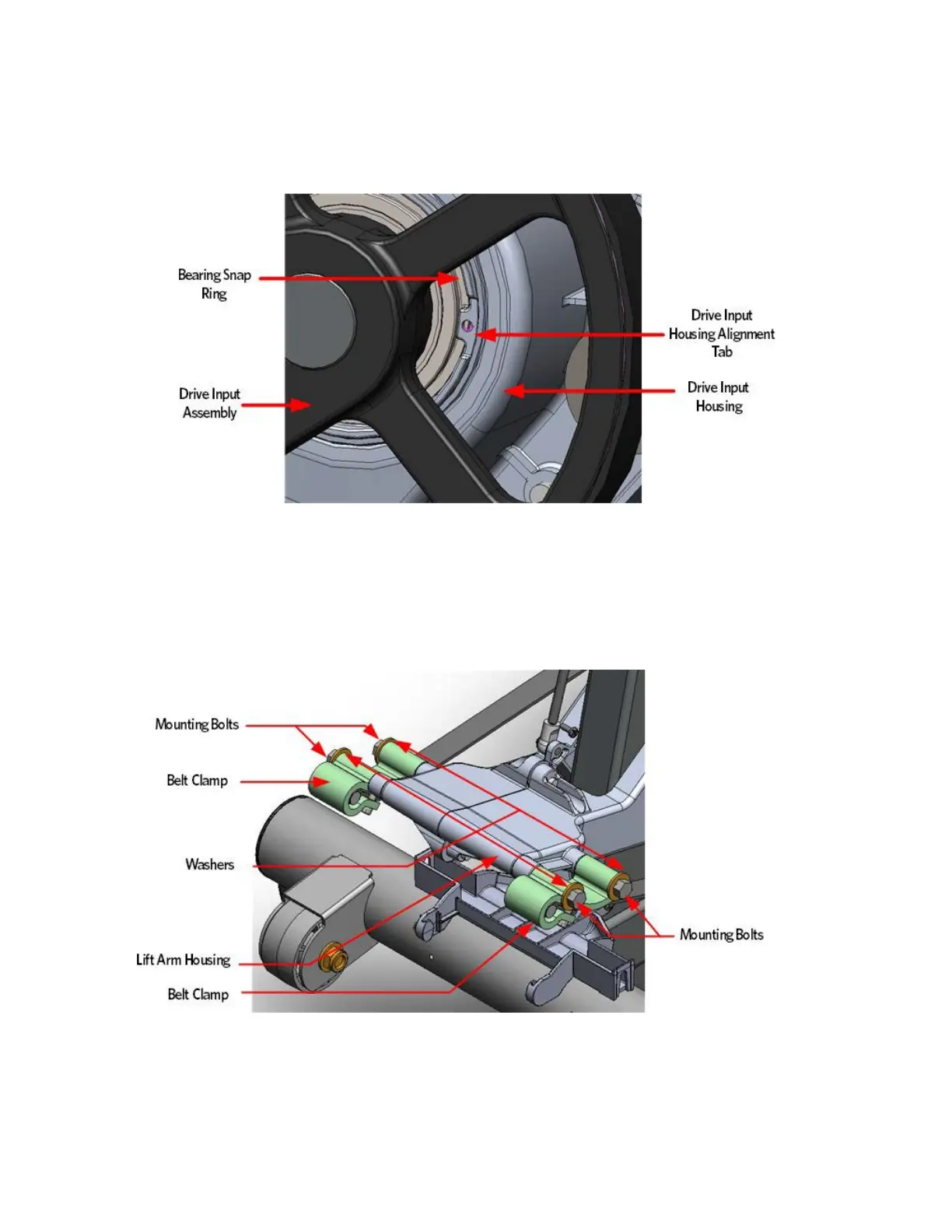

Figure 283: Lift Arm and Belt Clamps
22 Remove the five 5/16-18X1 mounting bolts that secure the left and
right side arm housings to the input housing.
