© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

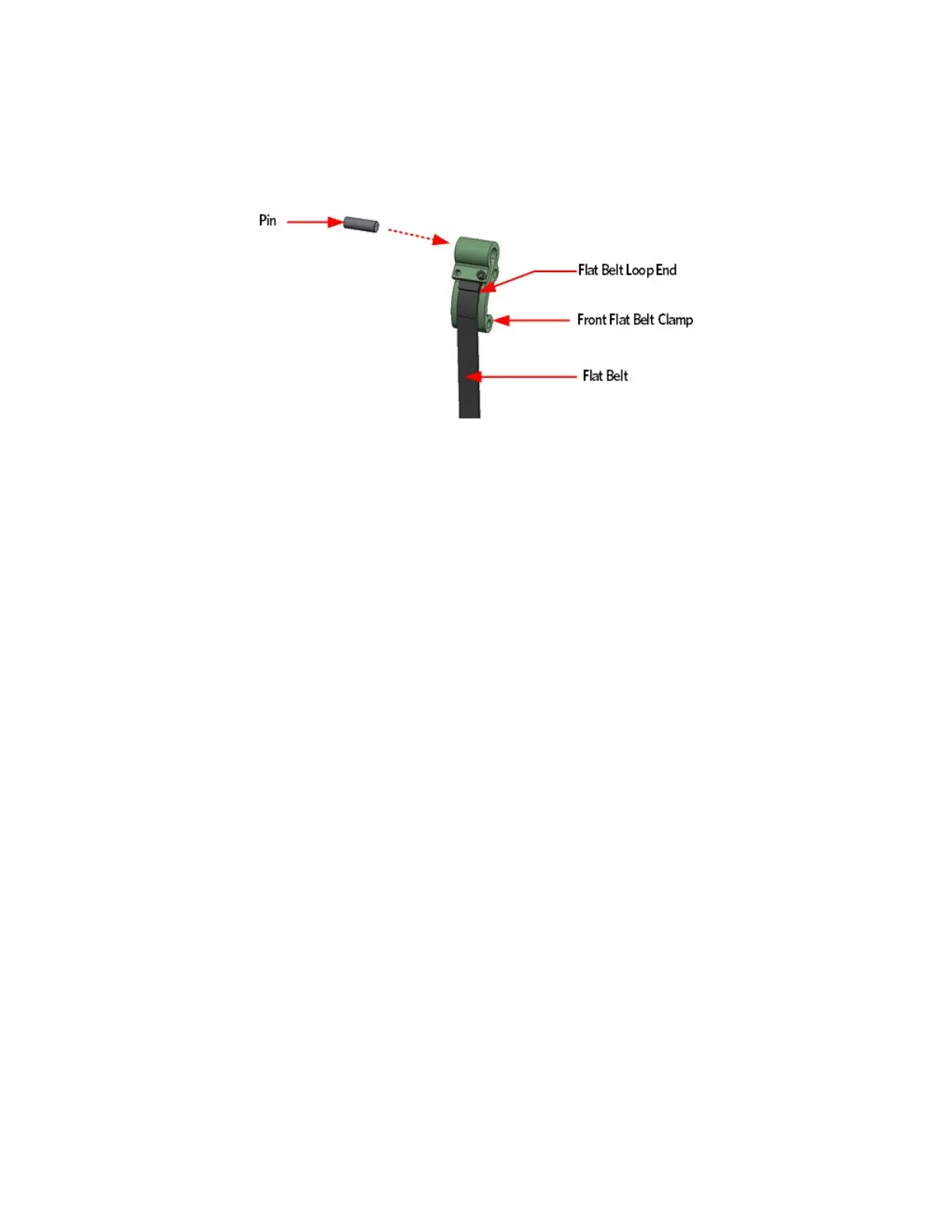

Figure 130: Front Flat Belt Clamp Pin Mounting
21 Install the second1/4-20X1 screw and shim that secure the flat belt
to the clamp, do not fully tighten at this time.
Inside Flat Belt Alignment
22 The flat belts ends will now need to be adjusted to their final
position before the flat belt clamp screws can be tightened. Gently
press downward on the stairarm pedal that corresponds to the
replacement belt.
23 Gradually increasing downward pressure on the stairarm pedal while
closely monitoring the flat belt ends for movement through the belt
clamps.
24 Monitor the movement of the belt through the clamps until one or
both ends of the flat belt has one belt segment extending beyond the
flat belt clamp.
To Next Page
