Page 260

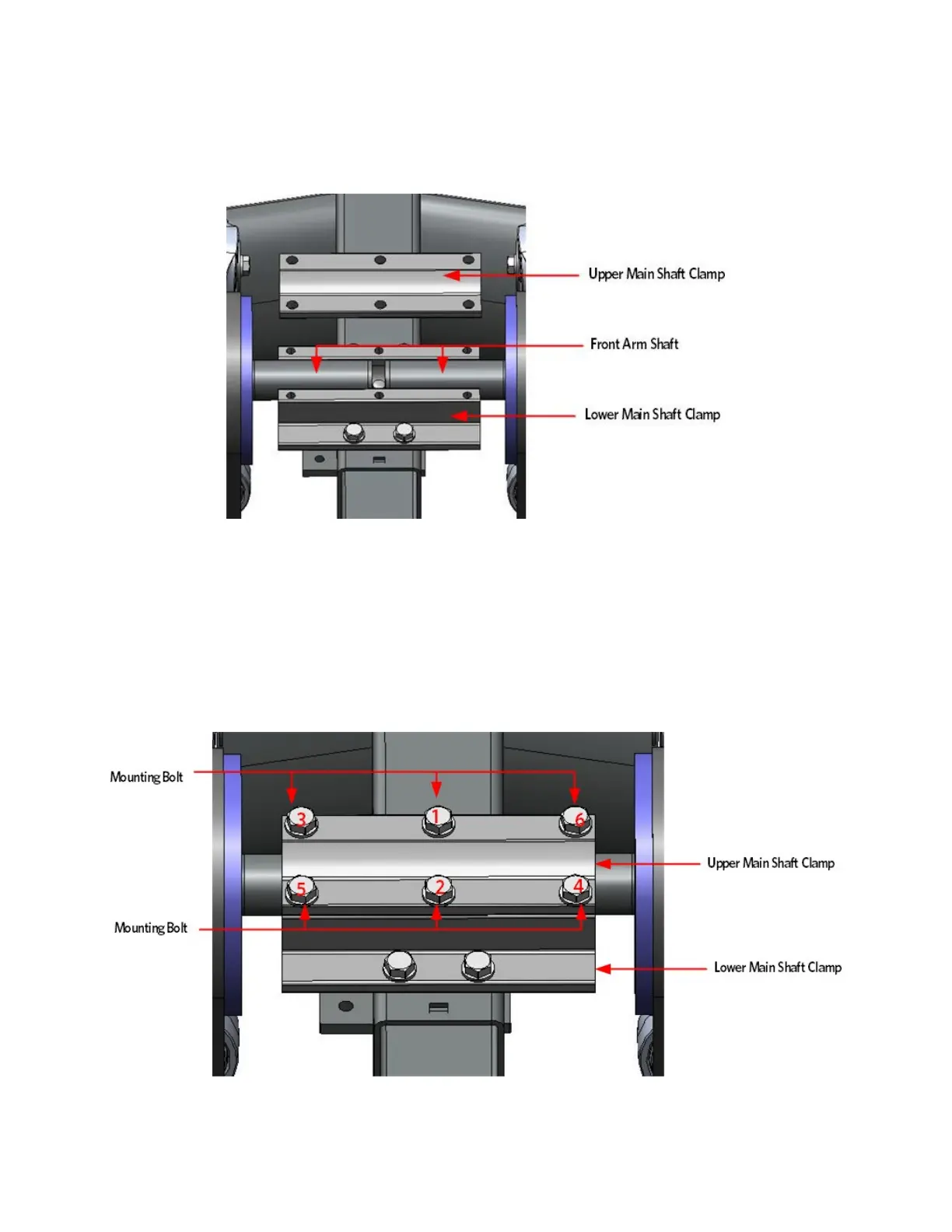

Figure 196: Front Arm Shaft and Main Clamp
5 Insert and finger tighten the bolt for the outside cam tube to the
upper arm.
6 Use the following sequence to ensure the upper arm main shaft is
properly secures to the front arm shaft; torque the bolts to 160
inch pounds.
Figure 197: Main Shaft Clamp Bolts- Torque Sequence
7 Secure the front arm shaft to the upper arm using the shoulder bolt,
torque to 300 inch pounds (25 ft-lbs) or 25 foot pounds.
