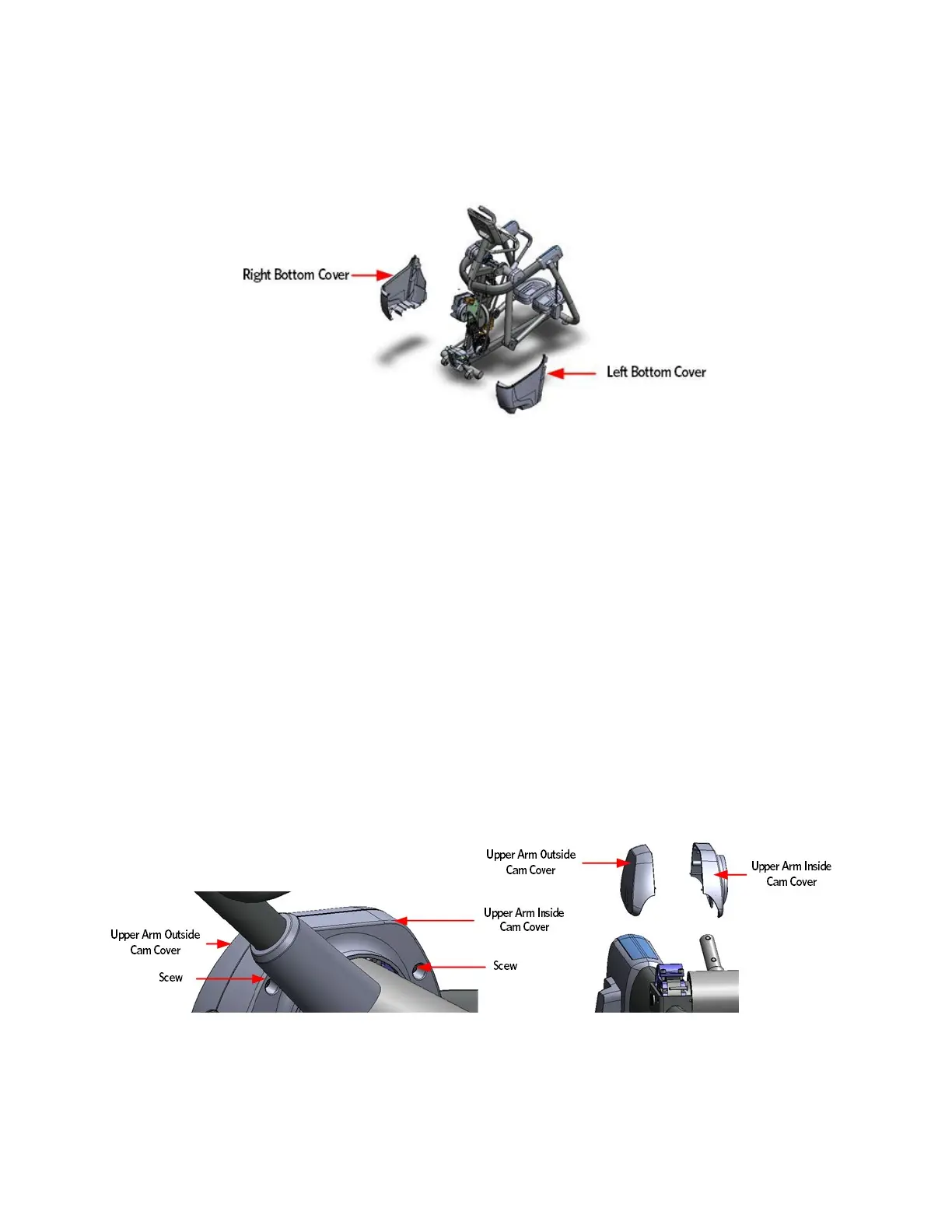

Figure 159: Bottom Covers Removed
12 Remove the screw that secures the belt keeper to the frame and
remove the belt keeper.
13 Remove the tension from the inner flat belt pulleys by lifting up on
the stairarms, pulling the flat belts off the flat belt pulleys, and
then gently setting the stairarm down.
Upper Arm Cam Cover Removal
14 Remove the two #10-24X1.25 screws that secure the upper arm cam
covers to the upper arm, then remove the covers. It may be necessary
to adjust the position of the vertical handlebar to gain access to
the upper arm cam cover screws.
15 Repeat the steps for the remaining upper arm cam cover.
Figure 160: Upper Arm Cam Covers
