Precor AMT Series User Manual

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 216

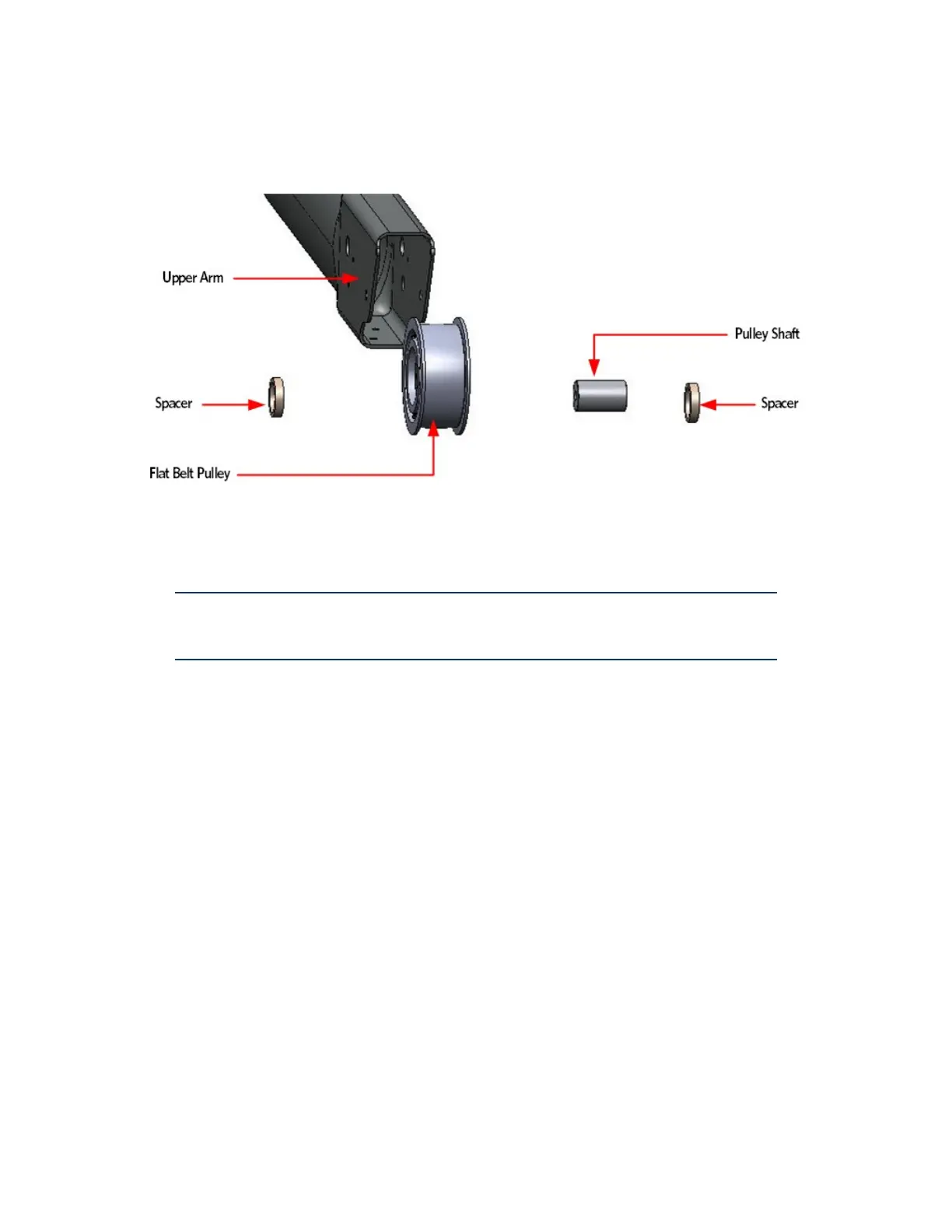

Figure 142: Upper Arm Flat Belt Pulley Removed
Flat Belt Removal - Upper Arm Cam
Note: Any time the flat belt terminal screws are removed from the flat belt
clamp or cams, the screws must be discarded and replaced with new
screws.
16 Remove and discard the two 1/4-20X1 screws and shims that secure the
flat belt to the cam clamp.

Precor AMT Series Specifications

General

Brand	Precor
Model	AMT Series
Category	Elliptical Trainer
Language	English
