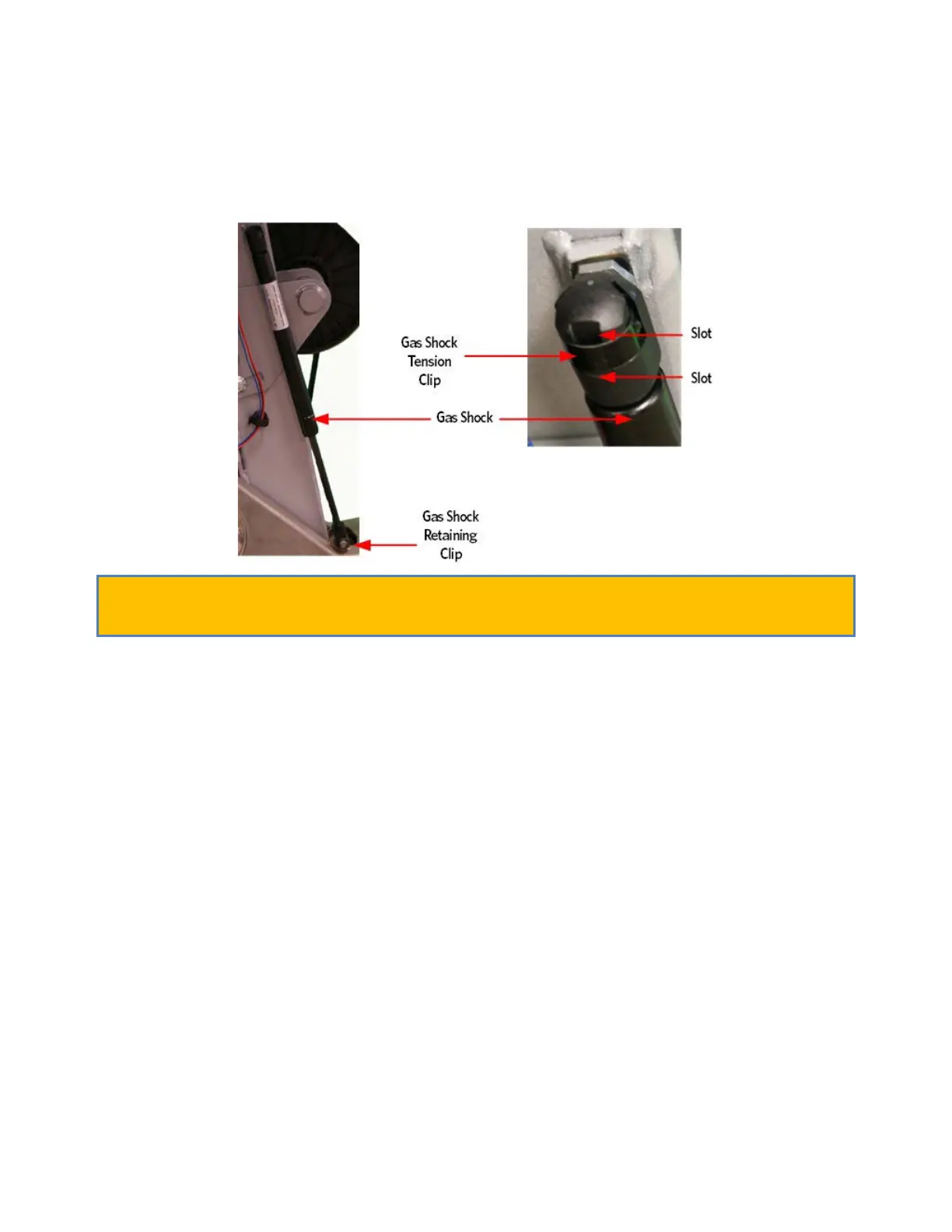

Figure 322: Gas Shock
Caution: It is recommended to have assistance available for following
step(s).
9 With the assistance, lift the front of the Incline platform until
the Incline tube mounting holes align with the Incline platform
mounting holes.
10 Replace the Incline motor mounting pin through the Incline tube and
Incline platform and attach the hitch pin.
11 Replace the wave washer and flat belt pulley, secure the flat belt
pulley with the snap ring.
H-Brake Belt Installation
12 Apply a thin layer of AMSOIL GPOR1 synthetic polymeric grease along
the cam clamp track.
13 Position one of the belt clamps over the cam so that the length of
the belt is hanging down the left side of the AMT and then slide the
clamp onto the cam from right to left, until clamp hits the stop.
14 Feed the belt through frame and under the H-brake pulley.
15 Slide the clamp onto the cam and fasten the clamps together using
the H-Brake tension bolt, washers and nut.
H-Brake Belt Tensioning
16 Place a belt gauge on the H-brake belt.
