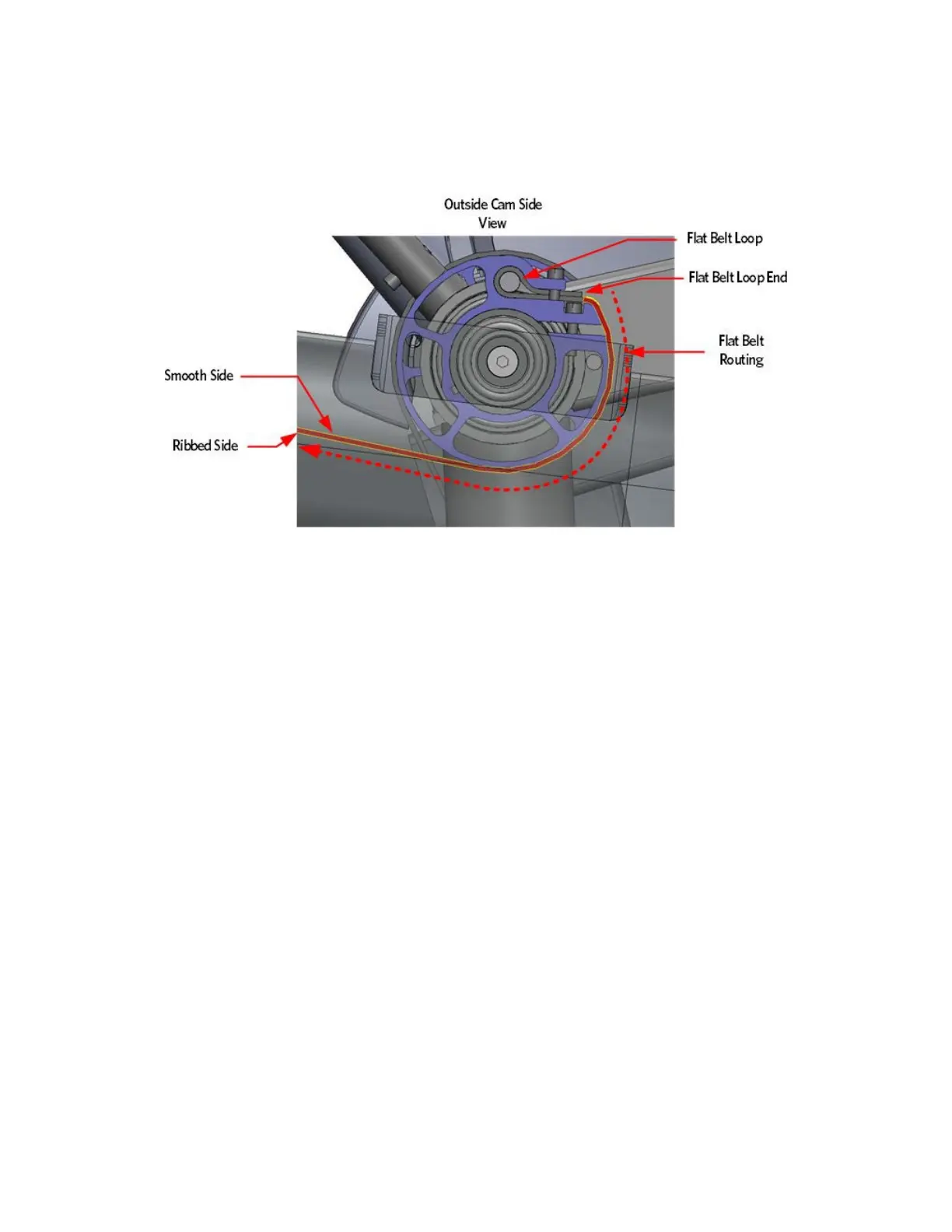

Figure 204: Outside Flat belt Routing - Cam
13 Install a replacement 1/4-20X1 screw and shim in one of the cam
clamp screw holes, do not fully tighten at this time.
14 Loop the end of the flat belt to the 10 inch mark. While holding the
flat belt end on the 10 mark, work the loop into the cam clamp. A
1/2 inch deep set socket can be used to assist in pushing the belt
into place. When the flat belt loop is about half way into the cam
clamp, push the pin into the flat belt loop.
15 Continue to work the flat belt loop and pin into the cam clamp until
the side of the flat belt is resting next to the clamp screw.
