42 Lift the stairarms and then thread the flat belts over the flat belt
pulleys.
43 Select the QUICKSTART program and adjust the resistance  key until
resistance level 10 is displayed. Pedal the AMT for approximately
one minute, then recheck the belt tension.

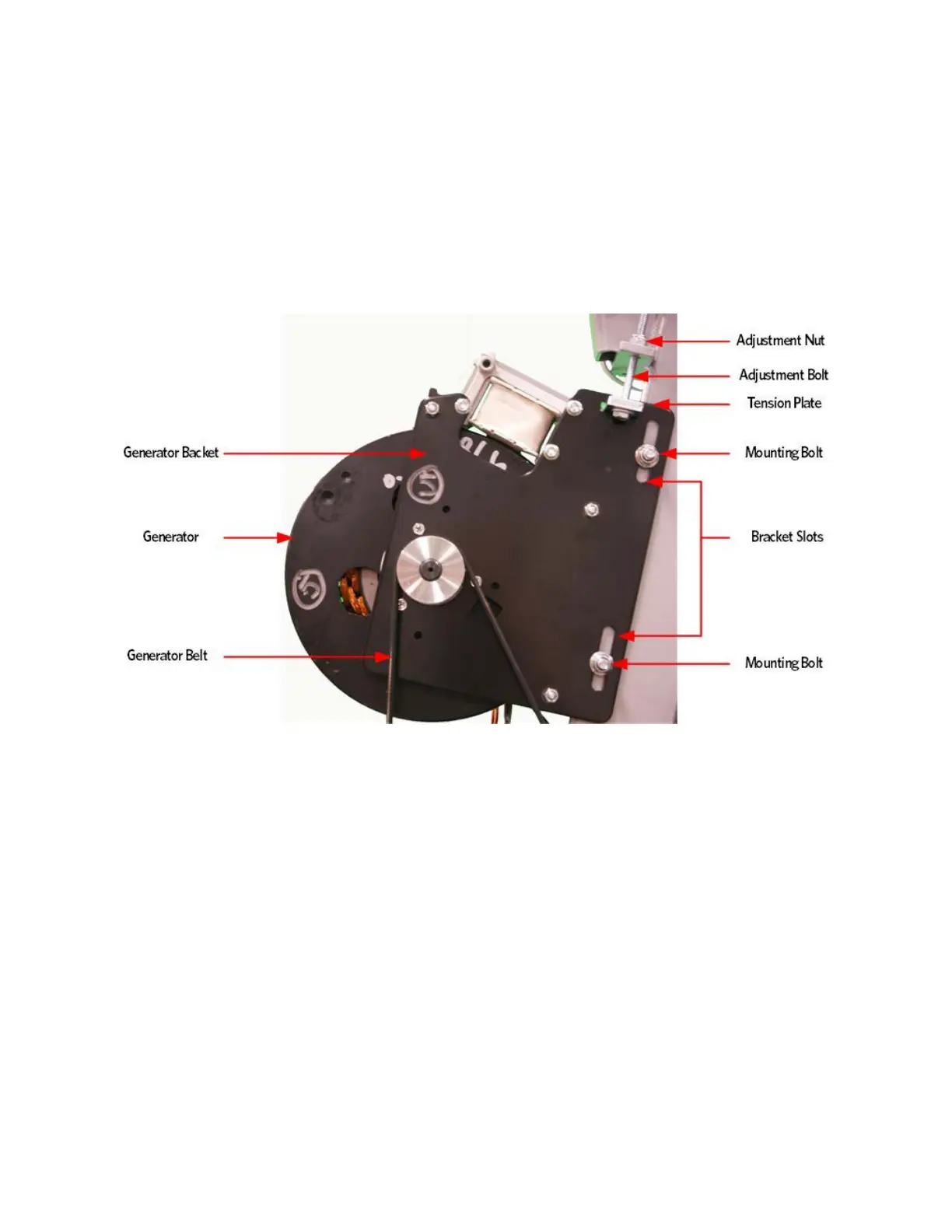

Figure 296: Generator
44 The drive input belt tension should read approximately 135 ±5 lbs
and the generator belt tension should read approximately 85 ±5 lbs.
See Drive Belt Gauge Instructions (on page 142)
45 Attach the Incline motor to the frame using the 3/8-16 mounting
bolt.
