Note: Any time the flat belt terminal screws are removed from the flat belt
clamp or cams, the screws must be discarded and replaced with new
screws.
5 Temporarily reinstall the two belt clamp mounting bolts without the
washers. Having the belt clamp installed without the washers will
help ease the removal and installation of the flat belts.
6 Remove and discard the two 1/4-20X1 flat belt clamp screws and shims
that secure the flat belt to the clamp.

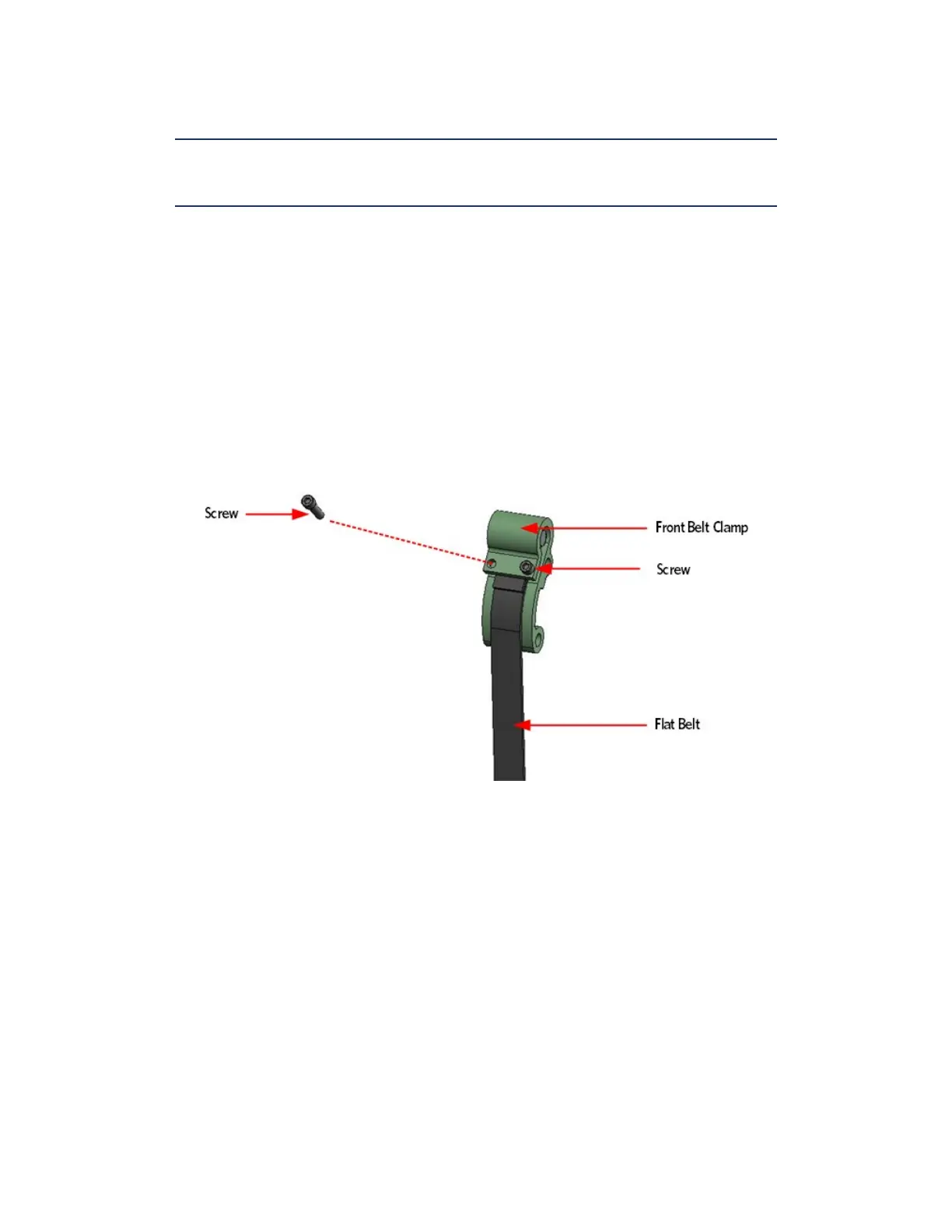

Figure 122: Front Belt Clamp Screw Removal
7 Using a screwdriver tip, push out the pin from the flat belt loop
and clamp and then slide the flat belt out of the clamp.
Upper Arm Cam Cover Removal
8 Remove the two #10-24X1.25 screws that secure the upper arm cam
covers to the upper arm, then remove the covers. It may be necessary
to adjust the position of the vertical handlebar to gain access to
the upper arm cam cover screws.
