Procedure
1 Remove the covers per procedure, Cover Replacement (on page 152).
2 Remove the Brake tension bolt, the two washers and nut.

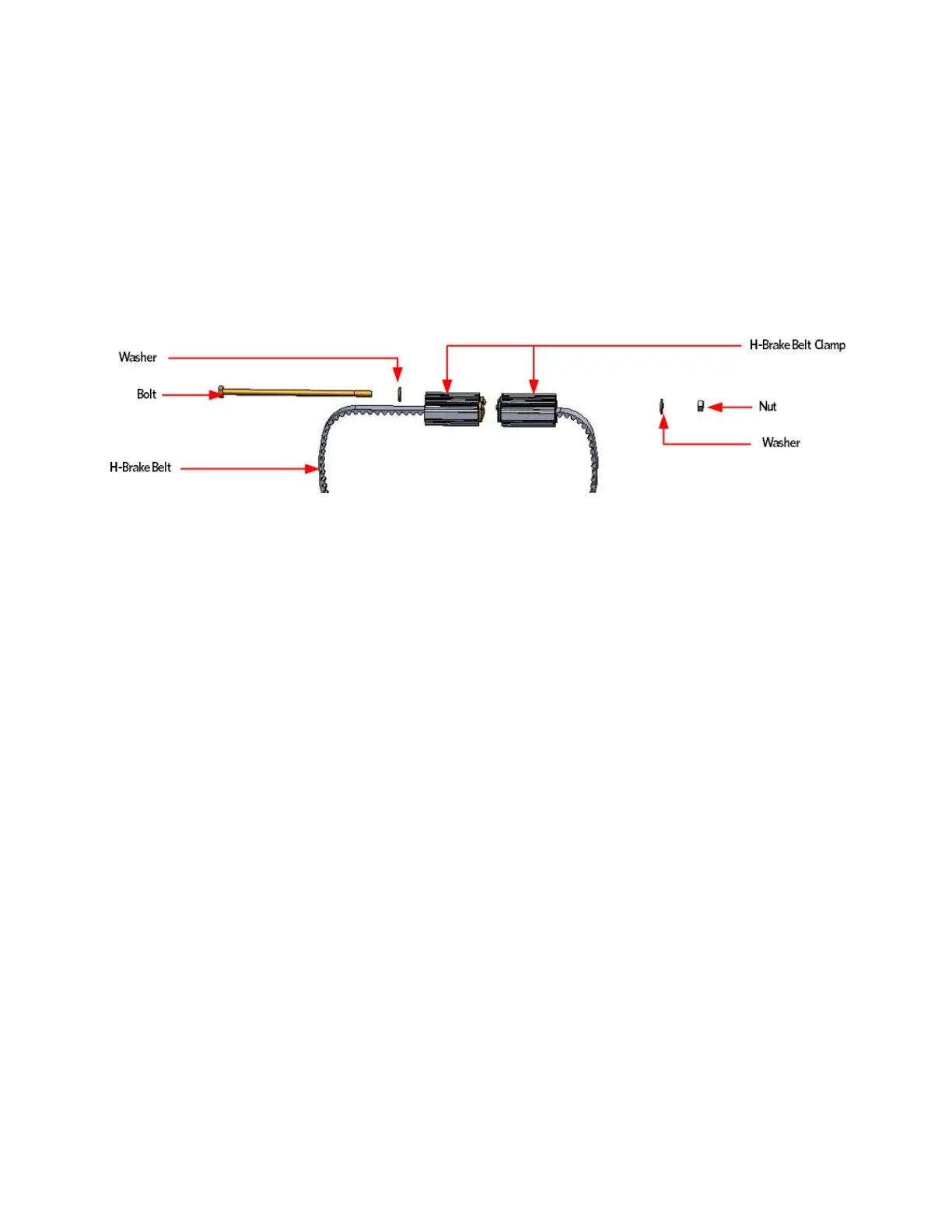

Figure 304: H-Brake Belt Assembly
3 Slide the right side belt clamp off the cam towards the right,
thread the clamp under the cam and out to the left side of the AMT.
4 Slide the left side belt clamp off the cam towards the right and
remove.
H-Brake Belt Installation
5 Apply a thin layer of AMSOIL GPOR1 synthetic polymeric grease along
the cam clamp track.
6 Position one of the belt clamps over the cam so that the length of
the belt is hanging down the left side of the AMT and then slide the
clamp onto the cam from right to left, until clamp hits the stop.
7 Feed the belt through frame and under the H-brake pulley.
8 Slide the clamp onto the cam and fasten the clamps together using
the H-Brake tension bolt, washers and nut.
H-Brake Belt Tensioning
9 Place a belt gauge on the H-brake belt.
