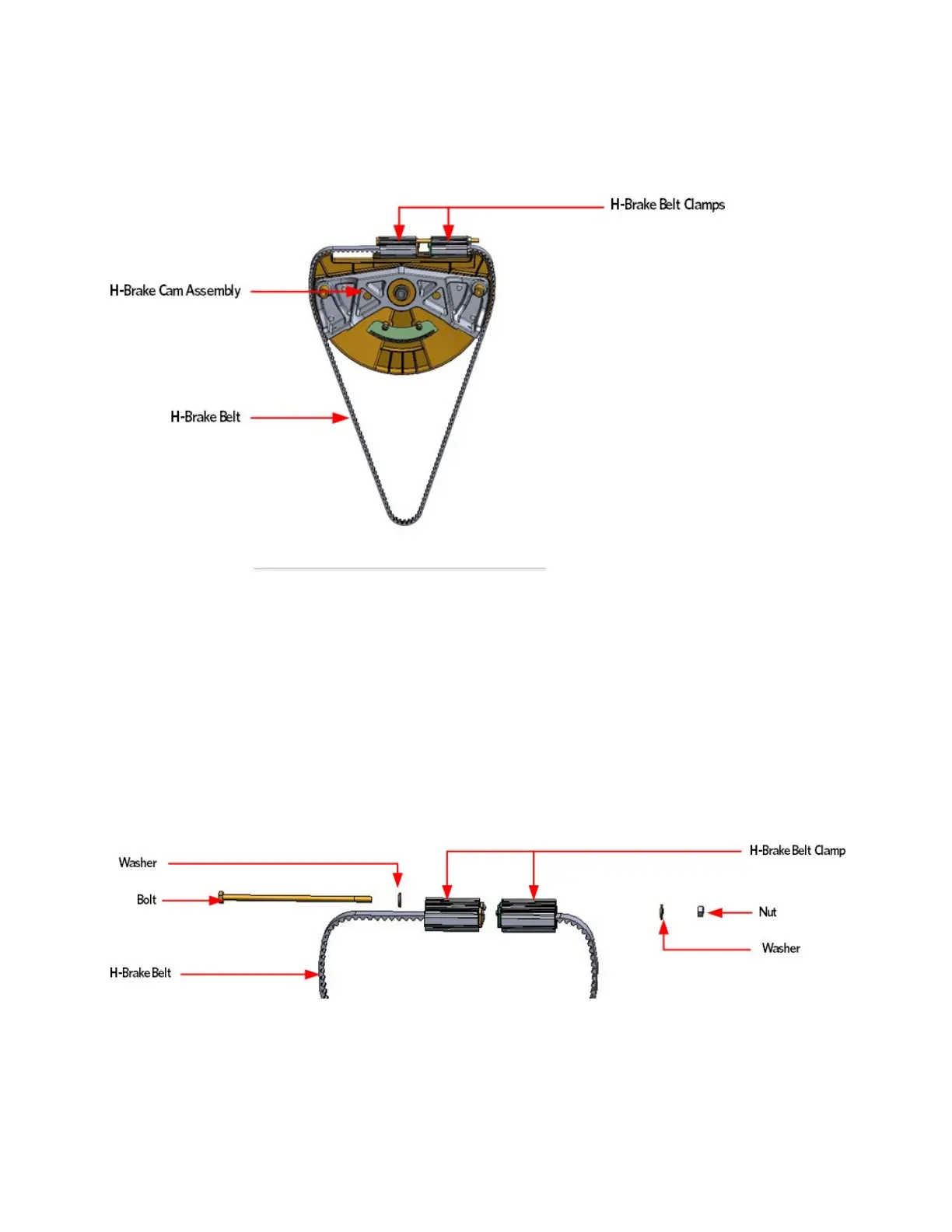

Figure 306: H-Brake Belt and H-Brake Cam
Procedure
1 Remove the covers as described per procedure, Cover Replacement (on
page 152).
H-Brake Belt Removal
2 Remove the H-Brake tension bolt, the two washers and nut.
Figure 307: H-Brake Belt Assembly
3 Slide the right side belt clamp off the cam towards the right,
thread the clamp under the cam and out to the left side of the AMT.
4 Slide the left side belt clamp off the cam towards the right and
remove.
