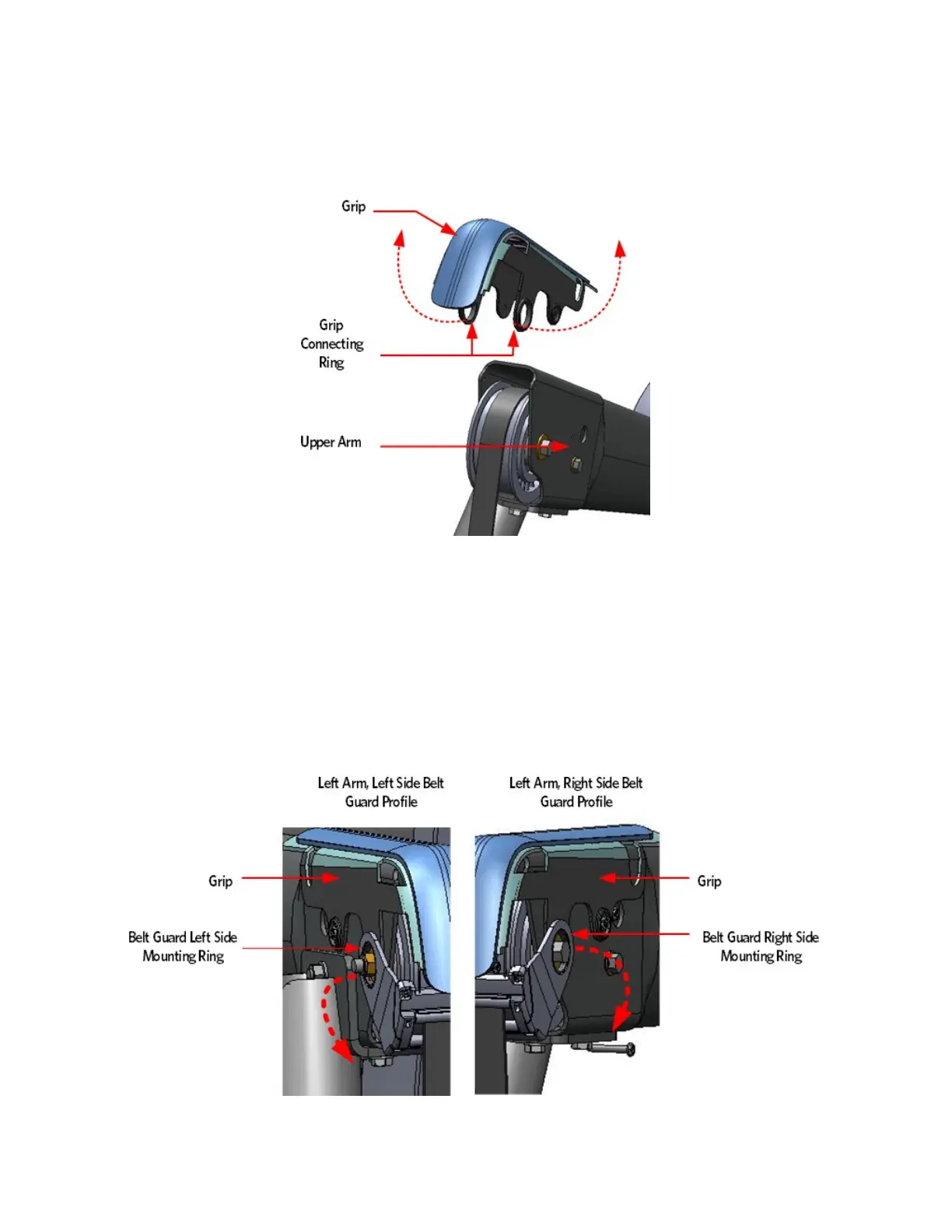

Figure 165: Upper Arm Grip Removal
4 Repeat the steps for the remaining front arm grip.
Belt Guard Removal
5 Grasp the belt guard mounting ring's located on each side of the
upper arm. Gently pull out and away from the grip connection ring's
just enough to extend past the mounting bolt.
Figure 166: Belt Guard and Upper Arm
