Precor AMT Series User Manual

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 318

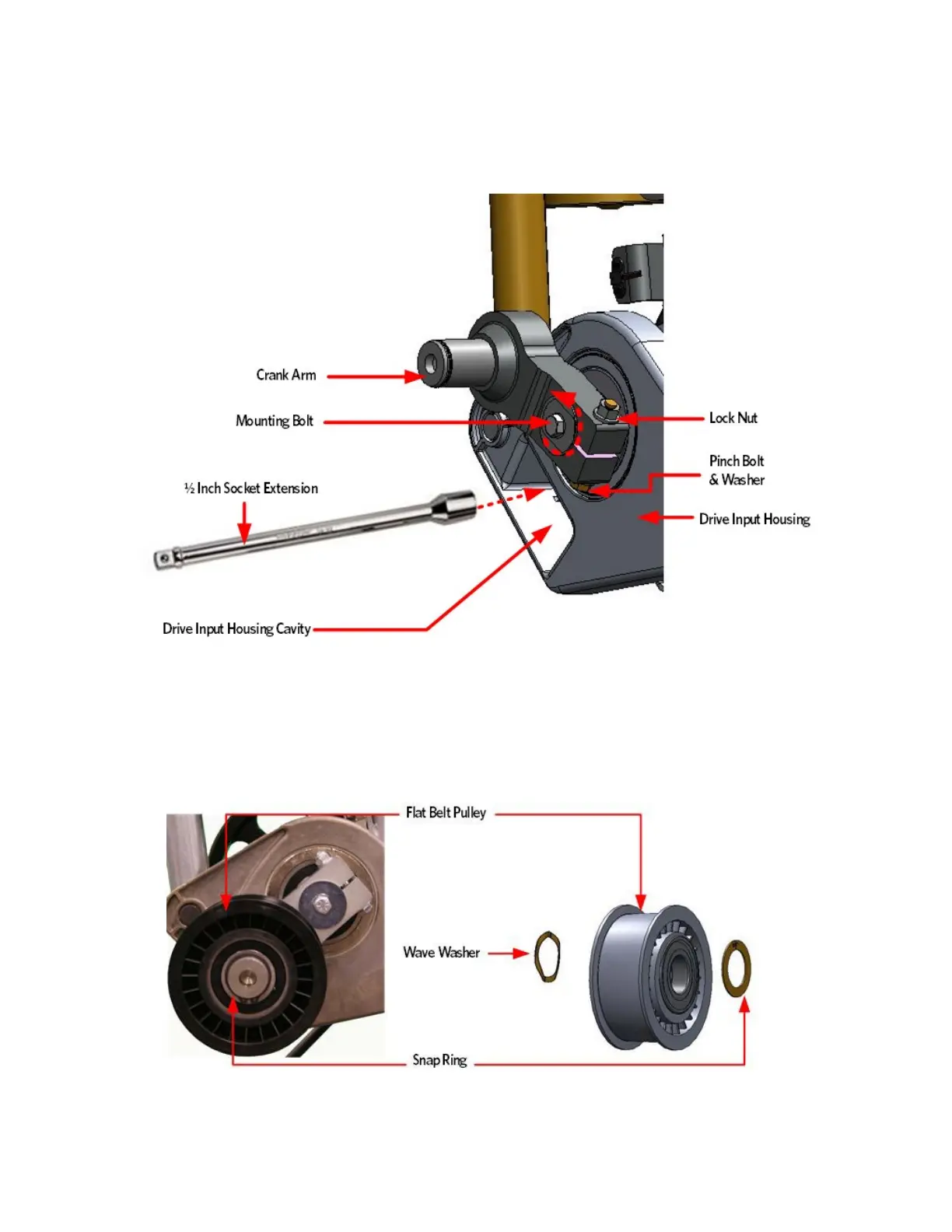

Figure 264: Crank Arm Bolt Removal/ Installation
29 Replace the wave washer and flat belt pulley onto the crank arm
shaft and secure with the snap ring. Make sure the snap ring is
fully seated into the shaft groove.
Figure 265: Crank Arm Flat Belt Pulley

Precor AMT Series Specifications

General

Brand	Precor
Model	AMT Series
Category	Elliptical Trainer
Language	English
