Page 134

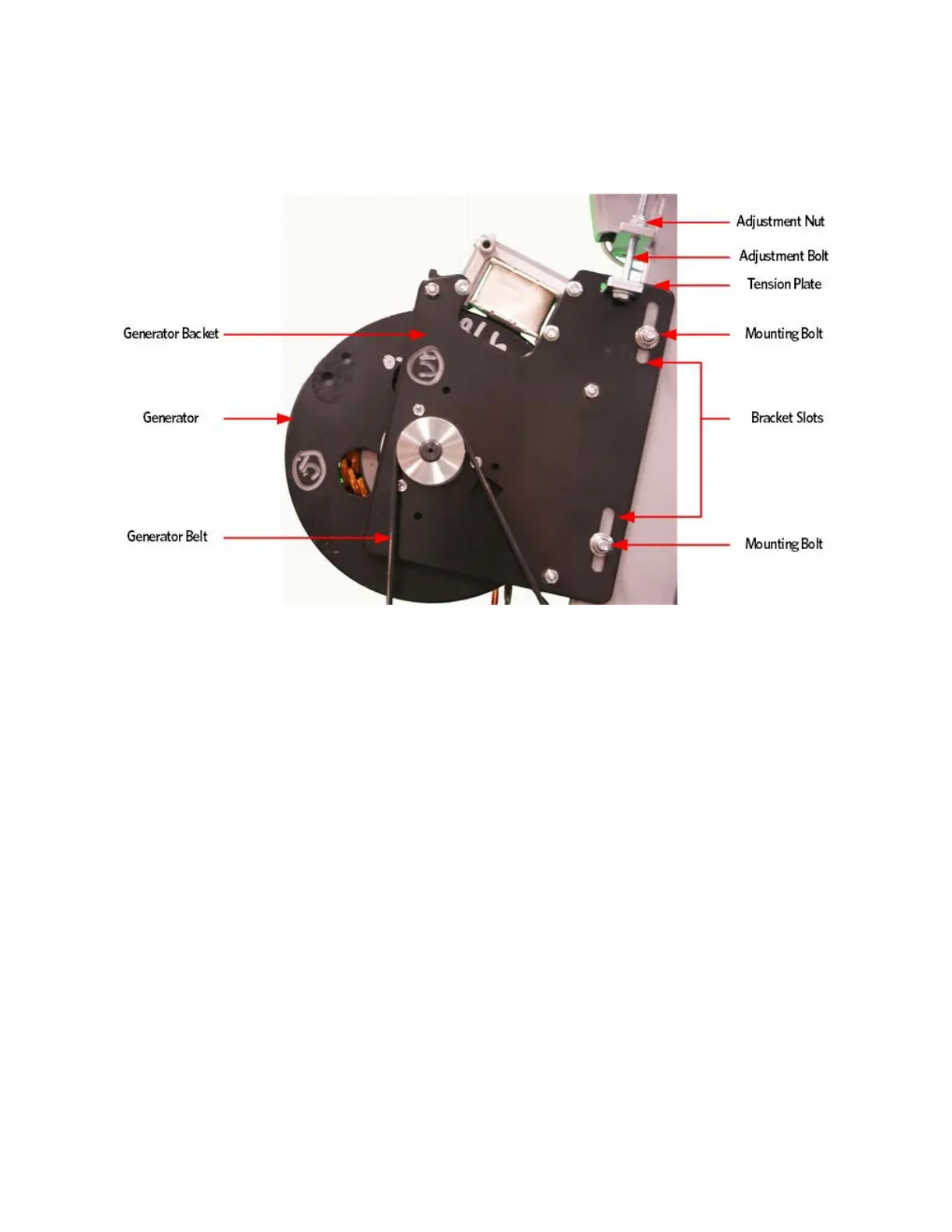

Figure 55: Generator
6 Loosen the two step up pulley mounting bolts.
7 Loosen or tighten the step up pulley adjustment bolt until the belt
gauge reads approximately 140 lbs.
