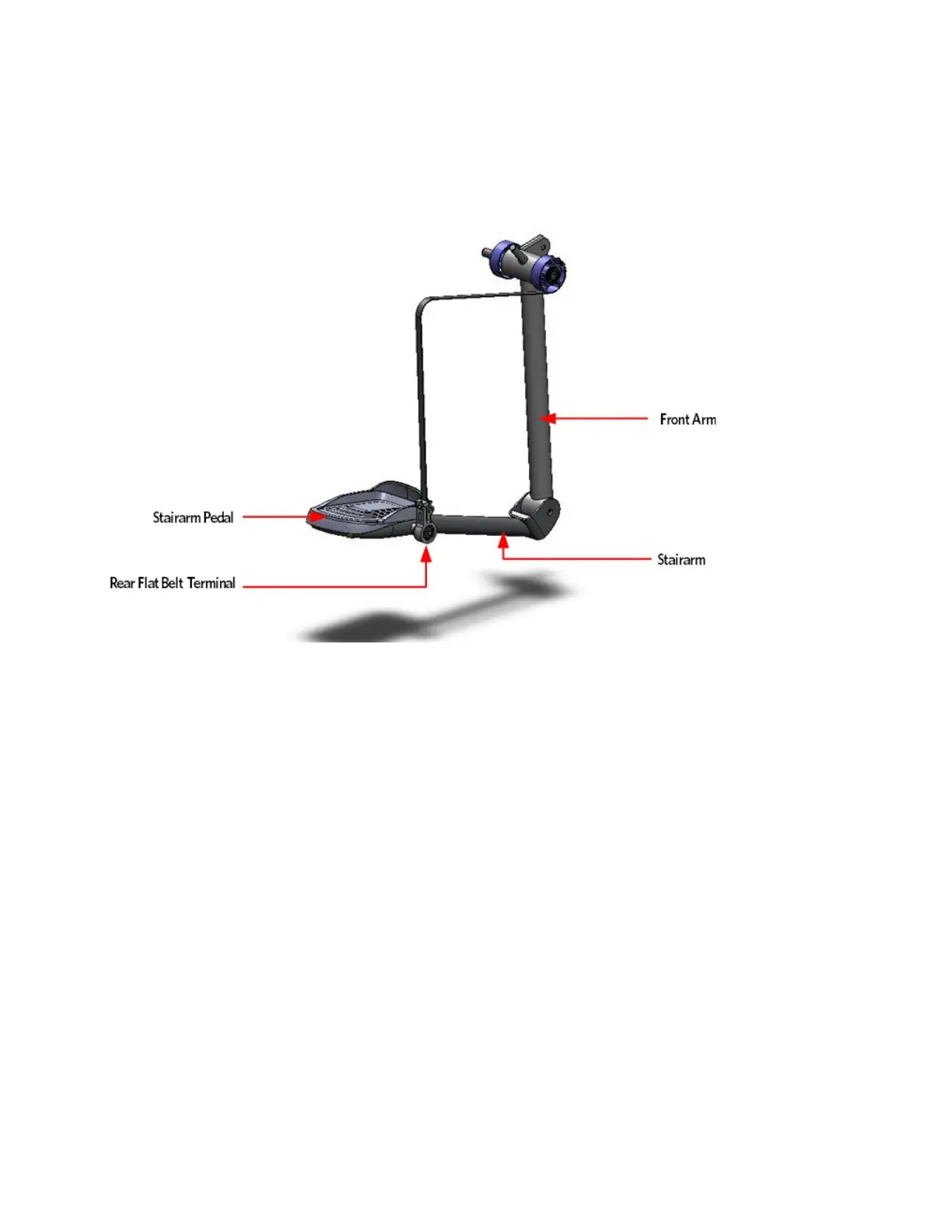

Figure 111: Stairarm and Front Arm
Stairarm Replacement Procedure
Rear Flat Belt Terminal Cover Removal
1 Remove the two #10-24 X 1.25 screws that secure the flat belt
terminal covers to the flat belt terminal, remove the outside
terminal cover.
2 Rotate the top of the inside terminal cover down until it is below
the stairarm pedal, pull to remove.
3 Repeat the process for the remaining rear flat belt terminal cover.
To Next Page
