4 Route the black, round Ethernet cable through the opening in the
upper right side of the armor, behind the tuner and connect the
Ethernet cable to the upper RJ45 type connector.
5 Route the grey, flat Data cable through the opening in the upper
right side of the armor, behind the tuner and connect the Data cable
to the lower RJ45 type connector.

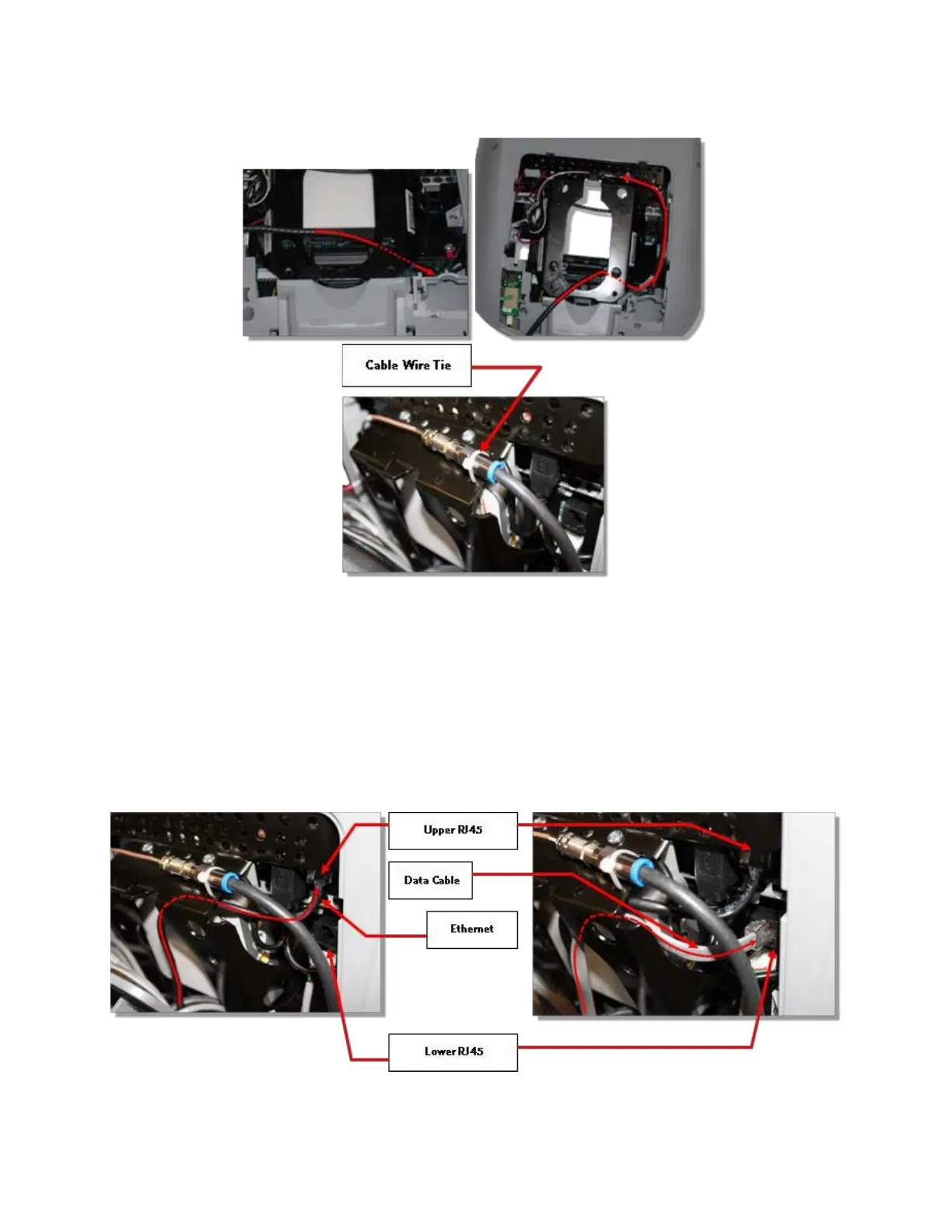

Figure 41: Cable Connections
6 Route the Power cable through the upper left corner of the weldment
and connect it to the P80 power connector.
