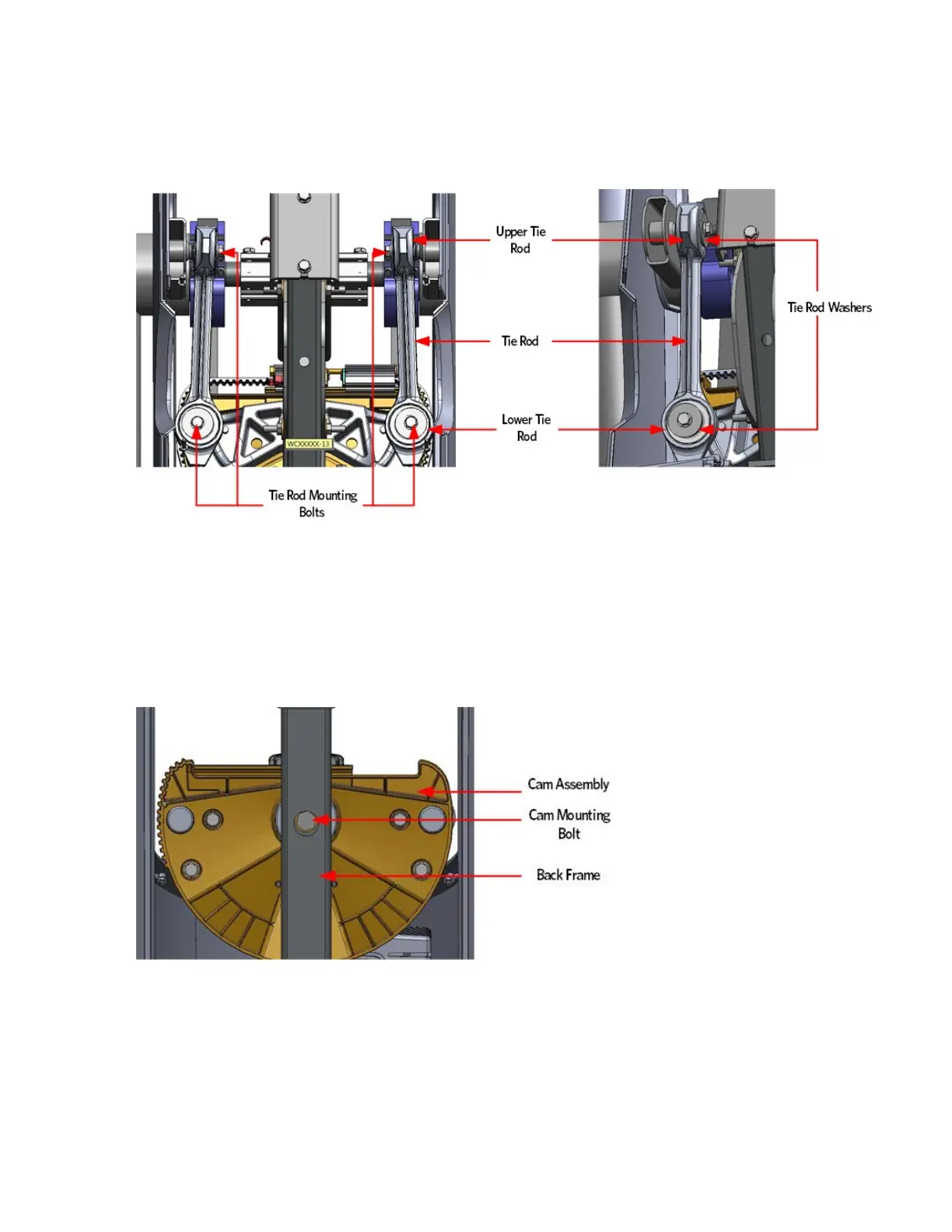

Figure 309: Tie Rods
H-Brake Cam Removal and Installation
8 Remove the bolt and washer that secures the cam assembly to the
frame.
Figure 310: Cam Assembly
9 Secure the cam assemble to the frame using the bolt and washer,
torque the H-Brake bolt to 600 inch pounds (50 ft-lbs).
Tie Rod Installation
10 Fasten each lower tie rod end to the cam assembly using the bolts
and washers, torque the bolt to 300 inch pounds (25 ft-lbs).
