Page 244

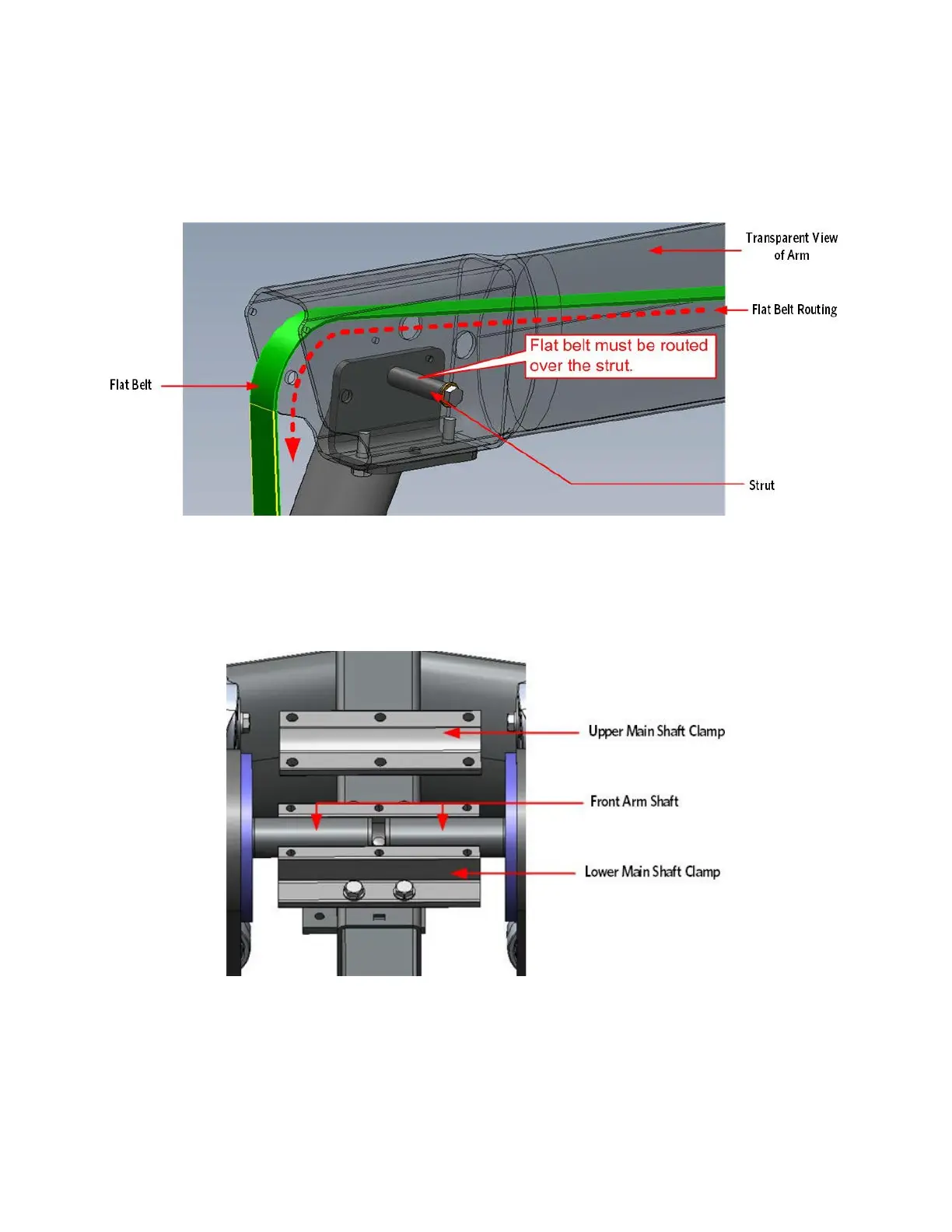

Figure 176: Flat Belt Routing - Transparent View of Arm
20 With assistance, lift the front arm and place it into the main shaft
clamp and upper arm. Repeat the process for the remaining front arm
assembly.
Figure 177: Front Arm Shaft and Main Clamp
21 Insert and finger tighten the shoulder bolts that secure the outside
cam tubes to the upper arms.
