© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

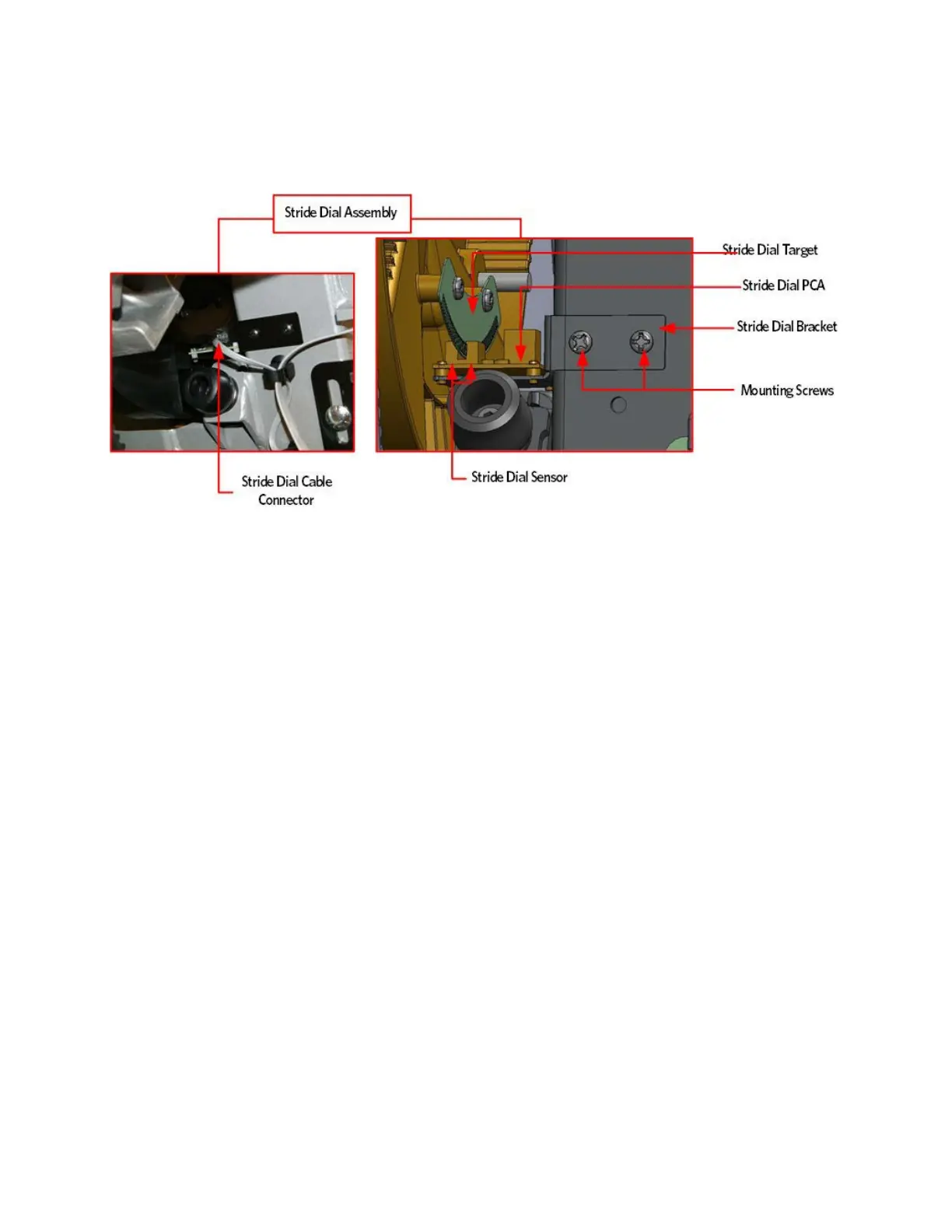

Figure 312: Stride Dial Assembly
H-Brake Belt Installation
15 Apply a thin layer of AMSOIL GPOR1 synthetic polymeric grease along
the cam clamp track.
16 Position one of the belt clamps over the cam so that the length of
the belt is hanging down the left side of the AMT and then slide the
clamp onto the cam from right to left, until clamp hits the stop.
17 Feed the belt through frame and under the H-brake pulley.
18 Slide the clamp onto the cam and fasten the clamps together using
the H-Brake tension bolt, washers and nut.
H-Brake Belt Tensioning
19 Place a belt gauge on the H-brake belt.
