© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 223

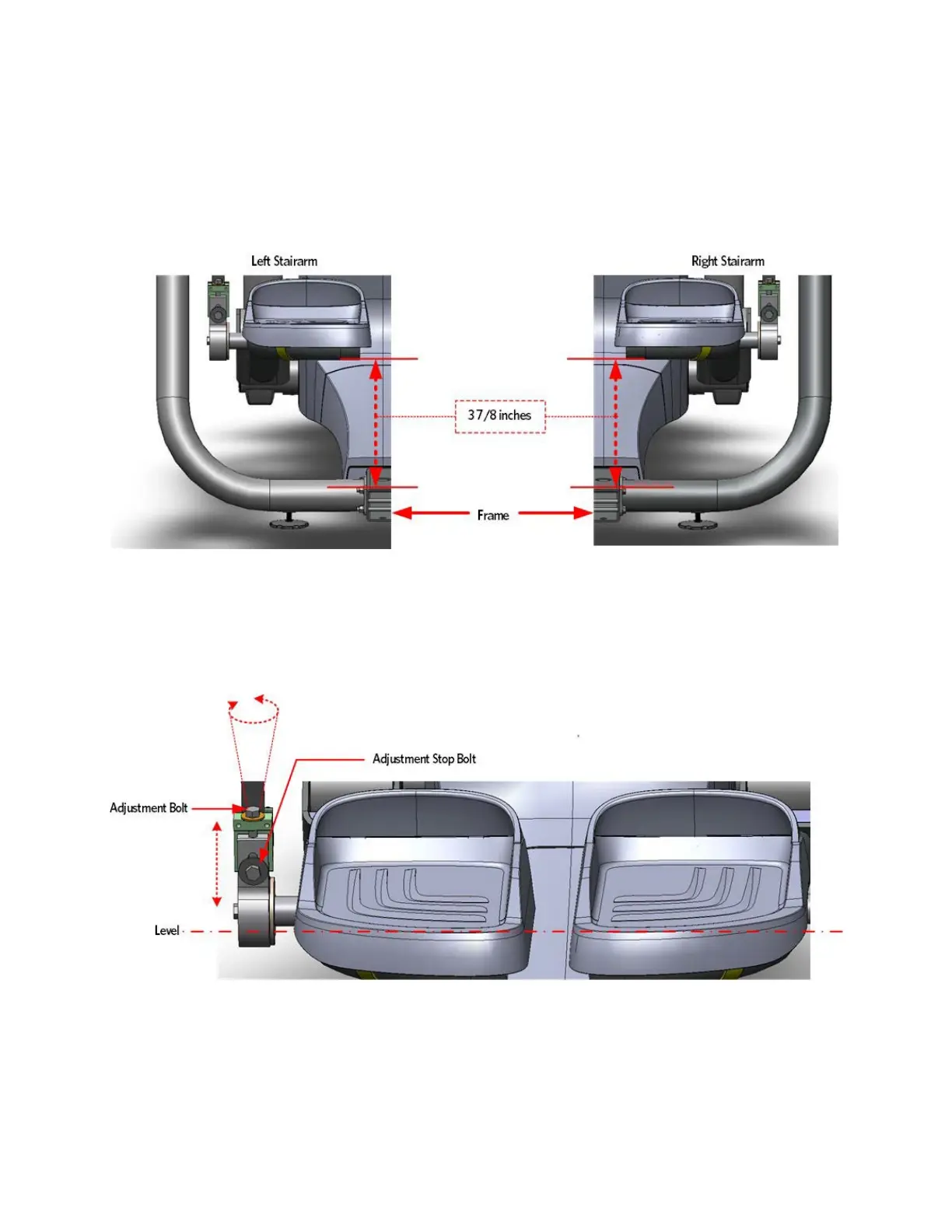

Figure 150: Stairarm Height Measurement
39 If the measurement is too low or too high, tighten or loosen the
adjustment bolt until the 3 7/8 inch measurement is achieved.
Figure 151: Flat Belt Terminal Adjustment
40 Repeat the process for the remaining stairarm.
41 Fully tighten the stop bolt, torque to 300 inch pounds (25 ft-lbs)
or 25 foot pounds.
