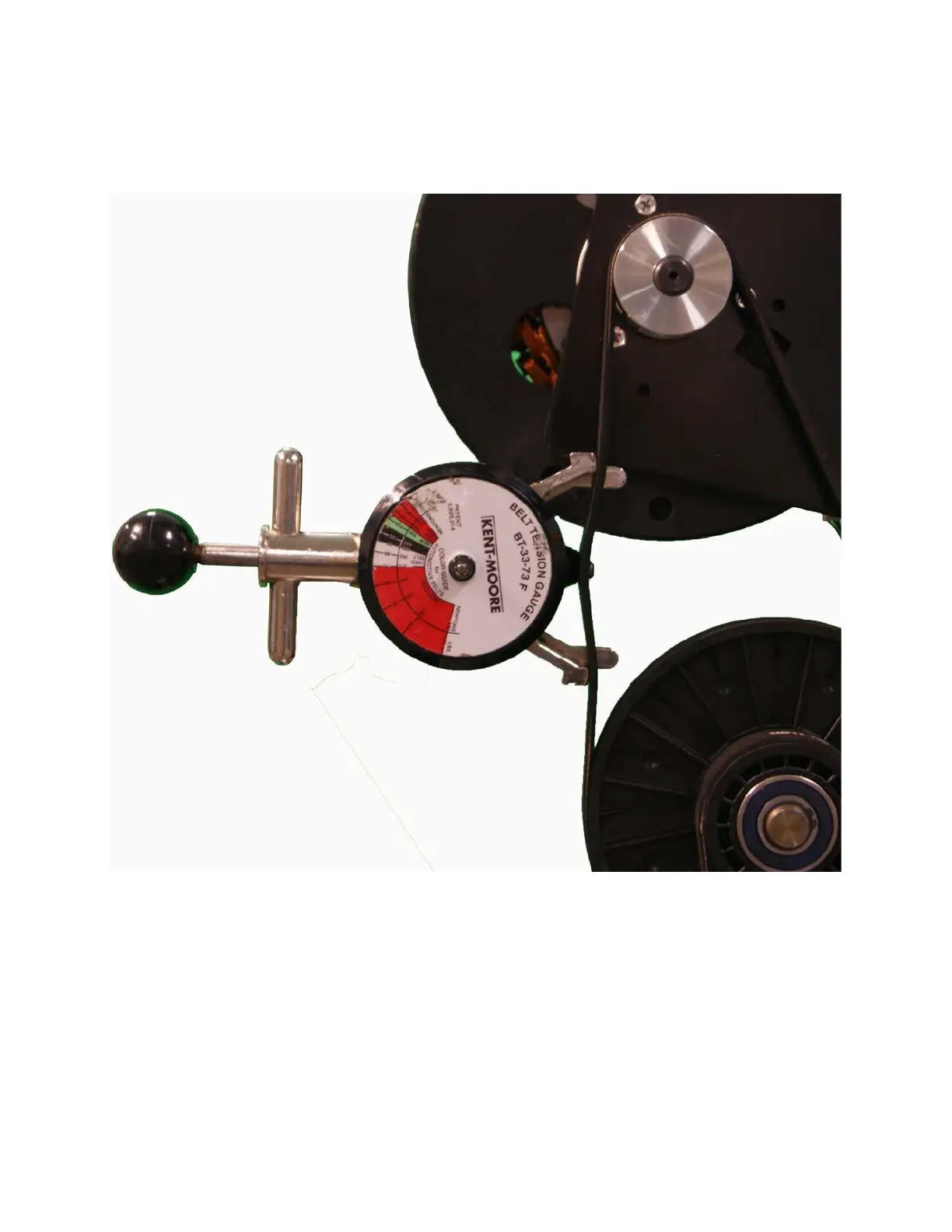

Figure 295: Generator Belt
39 The belt gauge should read approximately 85 ±5 lbs. If the belt
tension is significantly high or low the belt tension may be
adjusted by loosening or tightening the generator mounting
adjustment bolt. See Drive Belt Gauge Instructions (on page 142)
40 Loosen or tighten the generator adjustment nut and bolt until the
belt gauge reads approximately ±5lbs. See Drive Belt Gauge Instructions
(on page 142)
41 Tighten the two bolts that secure the generator mounting bracket to
the frame. Torque to 160 inch pounds
To Next Page
