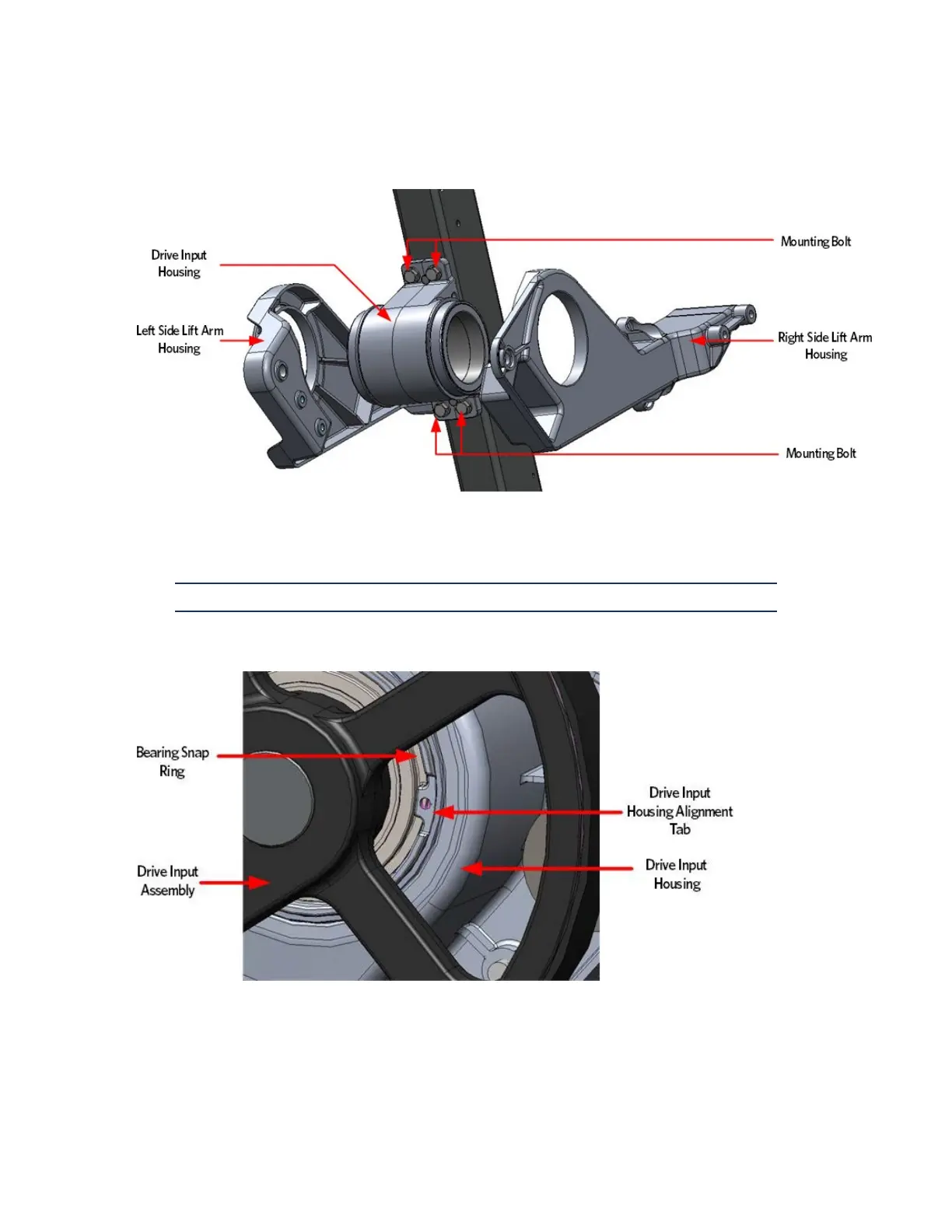

Figure 286: Lift Arm Housing and Drive Input Housing
25 Fasten the replacement drive input housing to the frame using the
four mounting bolts removed in step 9, torque to 160 inch pounds.
Note: Ensure the drive input alignment tab is position to the left side.
Figure 287: Drive Input Assembly Alignment
26 Assemble the left and right side arm housings on the drive input
housing and secure with the five 5/16-18X1 mounting bolts.
