© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

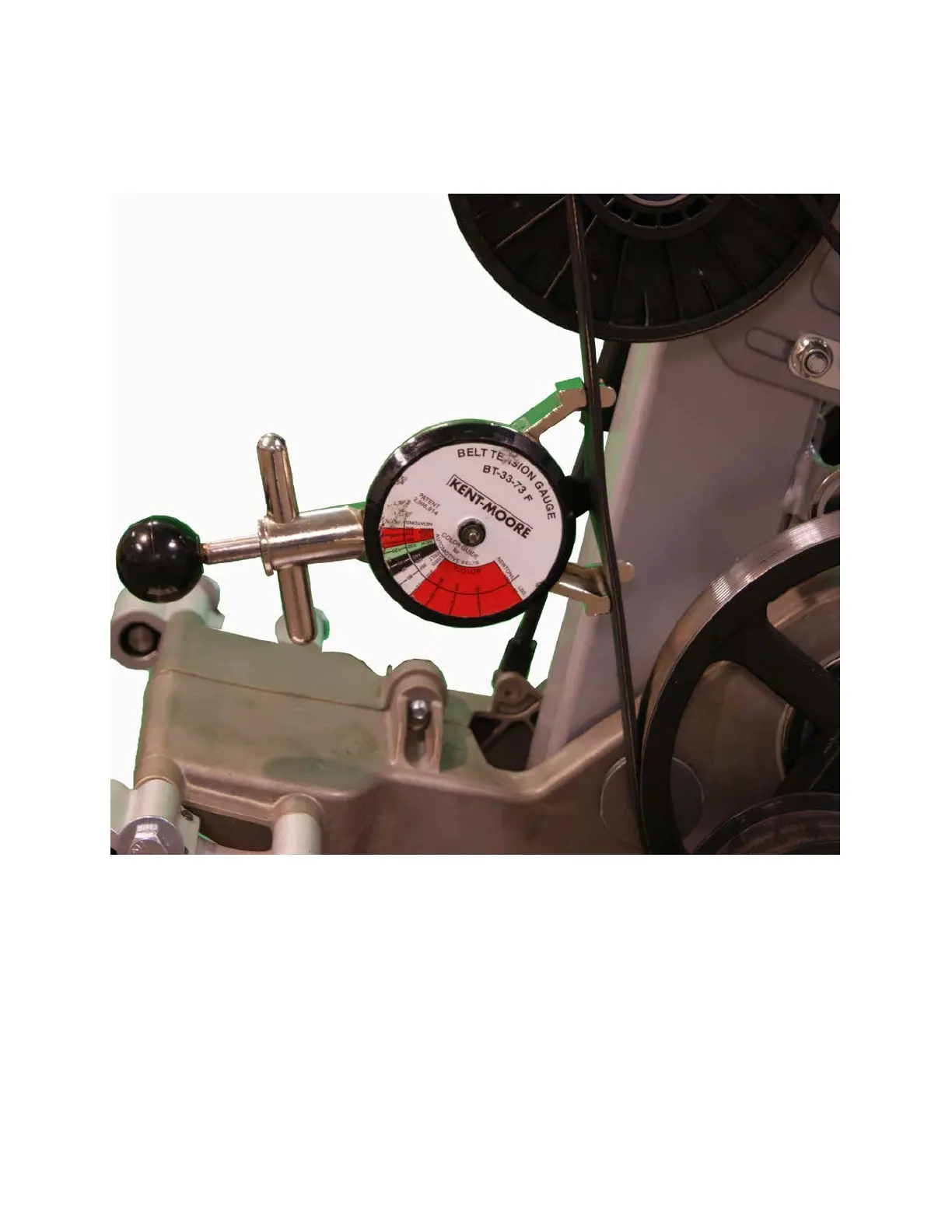

Figure 220: Dive Input Belt
4 The belt gauge should read approximately 135 ±5 lbs. If the Drive
belt tension is significantly high or low the belt tension may be
adjusted by following the steps below. See Drive Belt Gauge Instructions
(on page 142)
5 Loosen or tighten the step up pulley adjustment bolt until the
Drive belt gauge reads approximately 135 ±5 lbs. See Drive Belt Gauge
Instructions (on page 142)
