7 Place the two sections of the replacement belt guard so they are
positioned around the flat belt just below the upper arm. The front
belt guard should be positioned so that the interlocking tabs are
pointing toward the front of the machine, and the guard toward the
back. The rear belt guard should be positioned with the guard toward
the front. Align the interlocking tabs of the front belt guard with
the slots of the rear belt guard; rotate the halves together around
the flat belt until the locking tabs are locked.

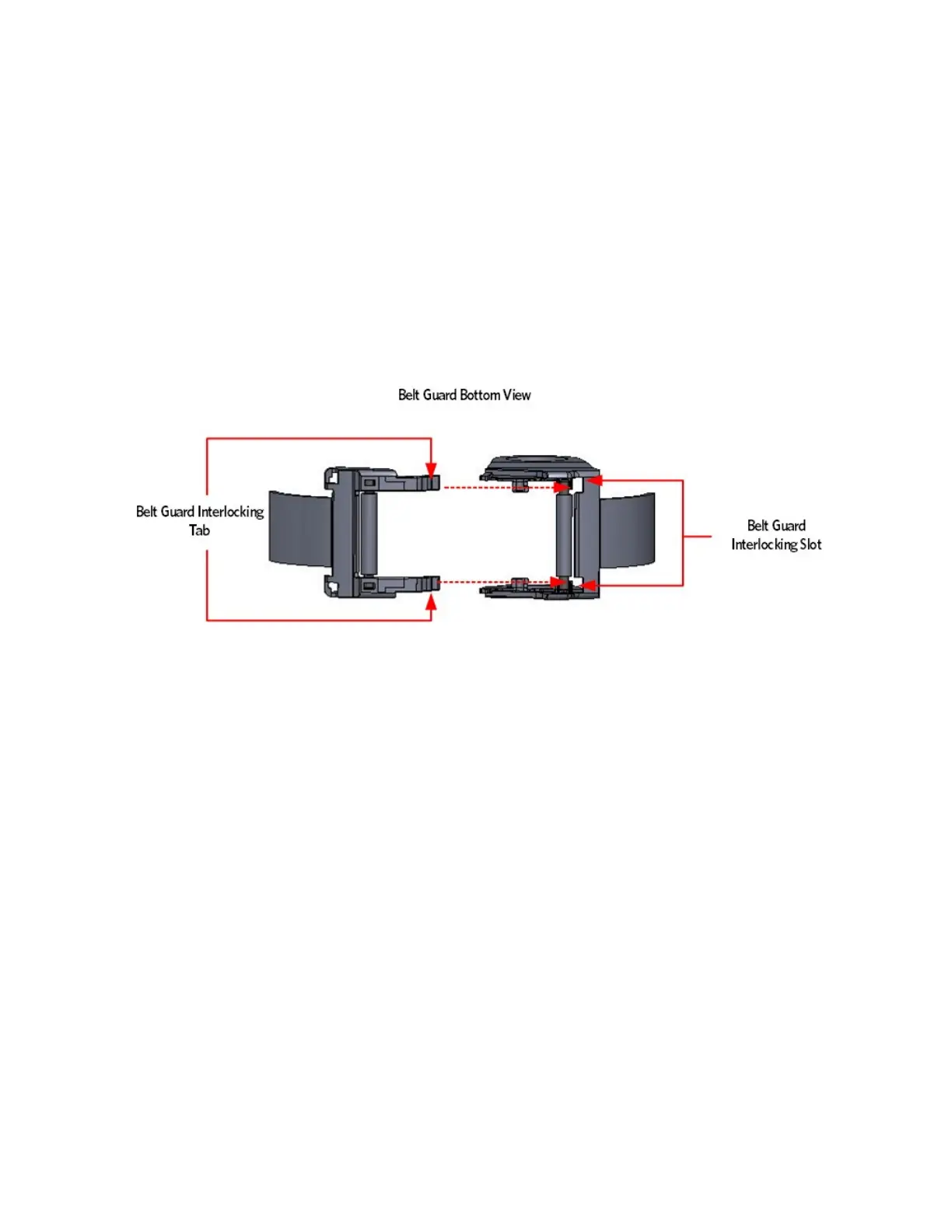

Figure 86: Belt Guard Interlocking Tabs and Slots
8 Grasp each belt guard mounting ring, lift the belt guard into
position over the upper arm mounting bolts, and then secure each
mounting ring to the connection ring.
