1 Remove the rear vent cover. Do not use a sharp tool, such as a flat
bladed screwdriver, to pry up the cover, as you can damage the
covers and possibly components inside the console. When the cover
starts to come loose, gently unsnap it from the P80 and set it aside
where it will not be scratched.

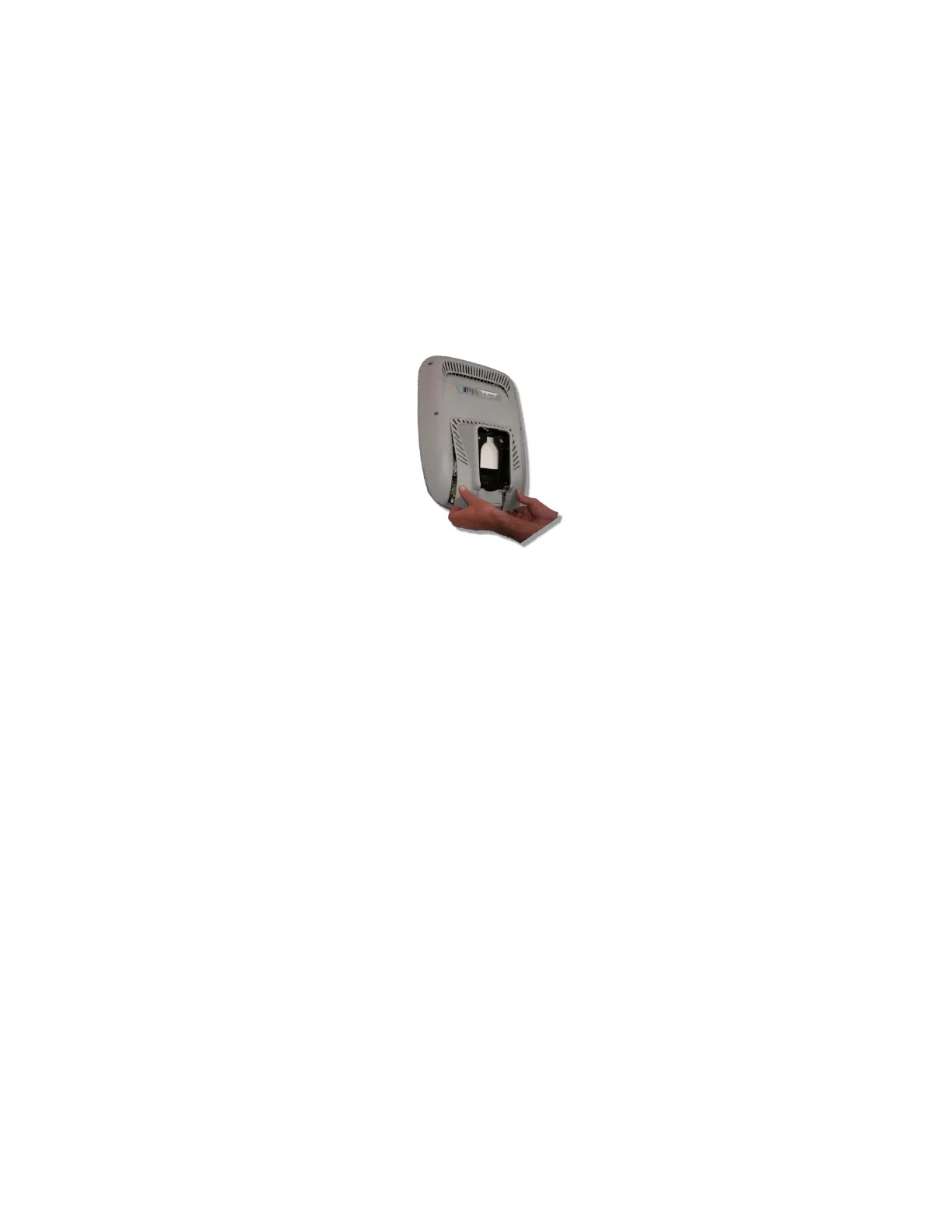

Figure 44: P80 Rear Cover Removal
2 The PCA’s in the console are static sensitive. They can be damaged
if proper static prevention equipment is not used. Attach an anti-
static wrist strap to your arm, and then connect the ground lead of
the wrist strap to frame ground.
3 The HR PCA snaps into its mounting. Press the release tab sideways
and remove the HR PCA from its mounting.
4 Disconnect the HR cable and handlebar cable from the HR PCA.
5 Connect the HHHR Grip cable assembly to the upper connector on the
HR PCA and the HR PCA Power cable to the lower connector on the
replacement HR PCA.
6 Orient the replacement HR PCA so that the side with the protective
foam pad is facing out and snap the HR PCA into its mounting.
