Page 233

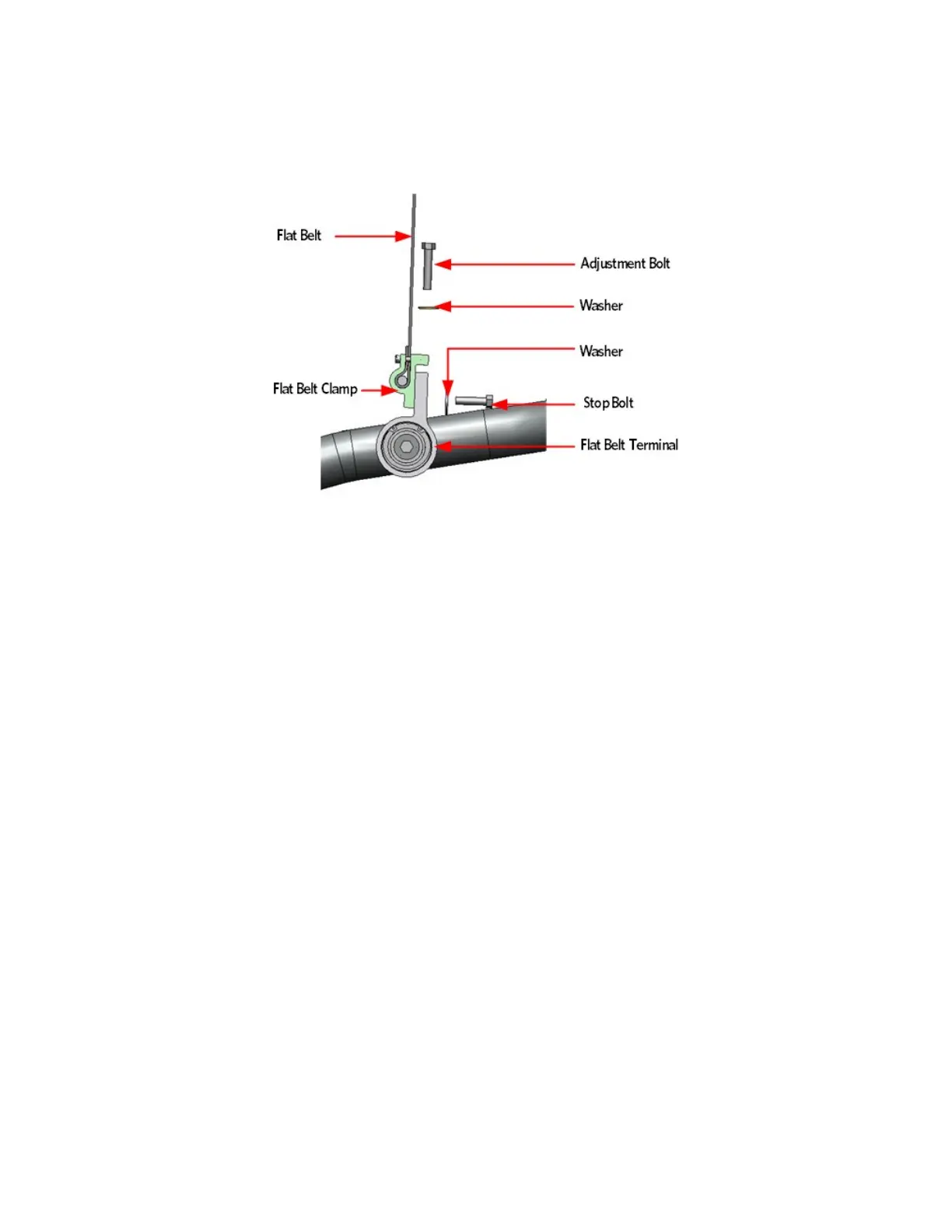

Figure 162: Flat Belt Clamp and Flat Belt Terminal
Upper Arm Cover Removal
2 Remove the four screws that fasten the inside upper arm covers to
the upper arm.
3 Remove the screw that fasten the outside upper arm covers to the
upper arm.
4 Remove the inside and outside covers from the upper arm.
