Precor AMT Series - Replacing the Lift Arm Housing

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 304

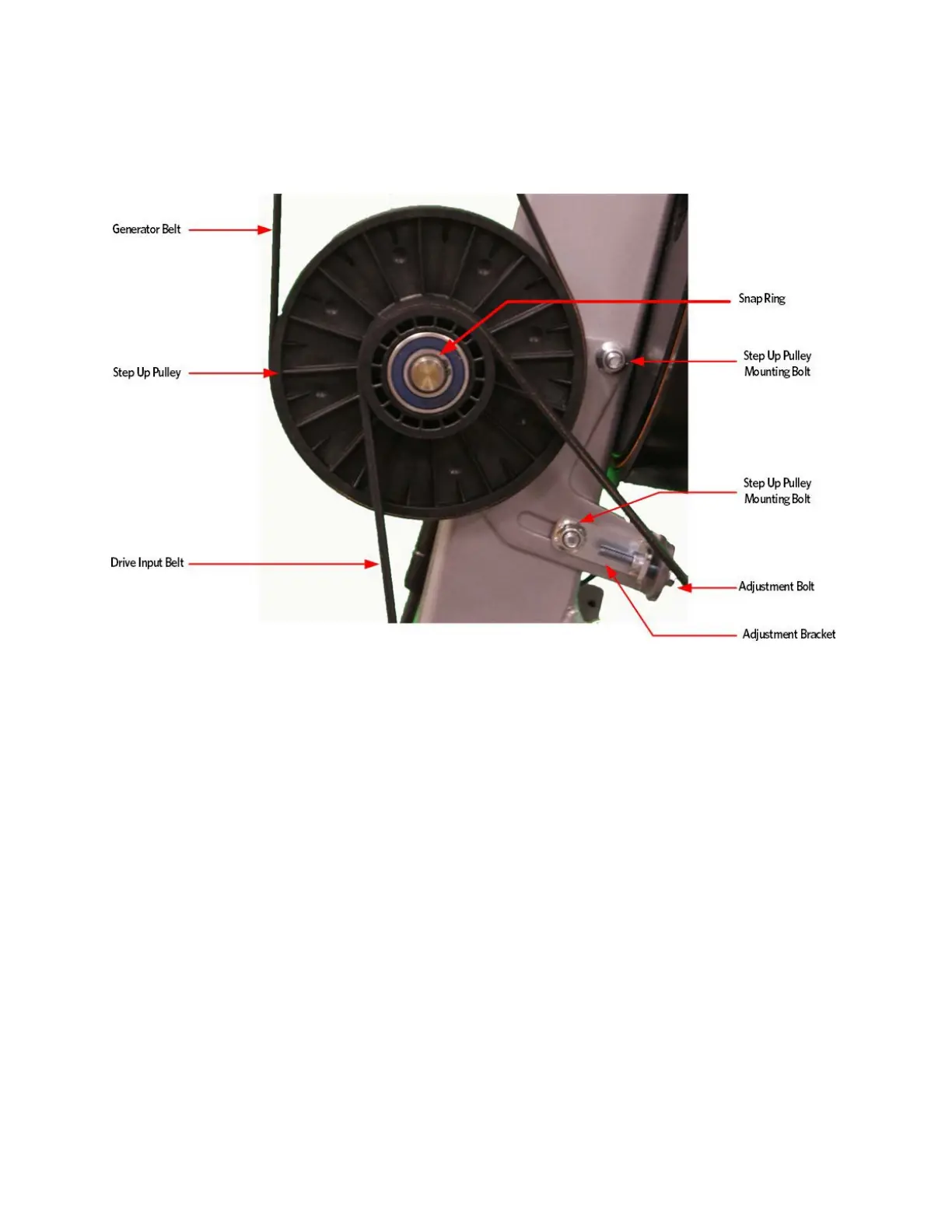

Figure 246: Step Up Pulley
22 Tighten the two step up input pulley mounting bolts. Torque to 160
inch pounds
23 Install the generator belt over the step up pulley and generator
pulley.
24 Place a belt gauge on the generator belt as shown in below.
