Precor AMT Series - Figure 112: Flat Belt Terminal Covers; Figure 113: Flat Belt Terminal Removal

© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Page 190

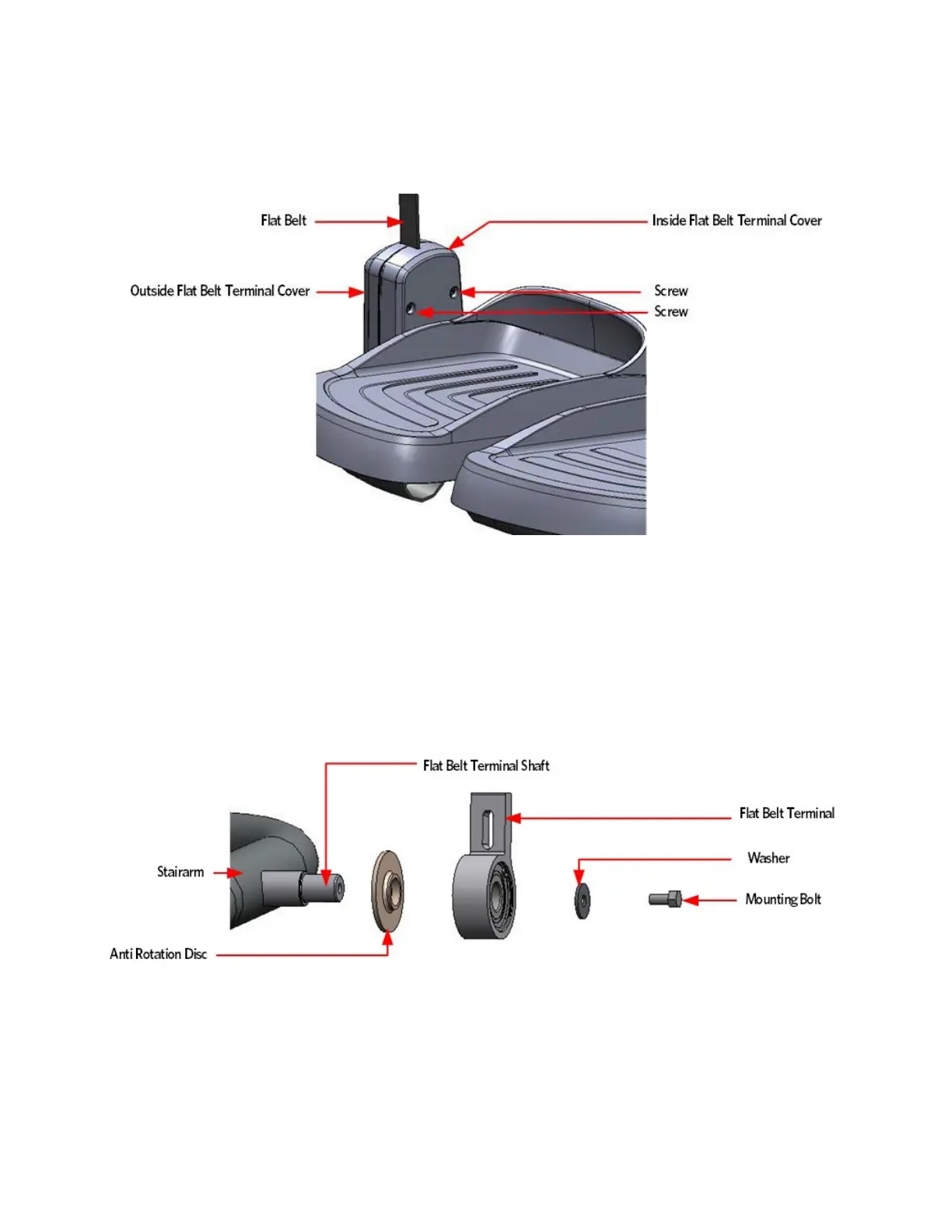

Figure 112: Flat Belt Terminal Covers
Flat Belt Terminal Removal
4 Remove the mounting bolt and washer that secure the flat belt
terminal to the stairarm, remove the flat belt terminal and anti
rotation disc.
Figure 113: Flat Belt Terminal Removal
