Renesas RL78 Series User Manual

RL78/F13, F14 CHAPTER 15 SERIAL ARRAY UNIT
R01UH0368EJ0210 Rev.2.10 989
Dec 10, 2015

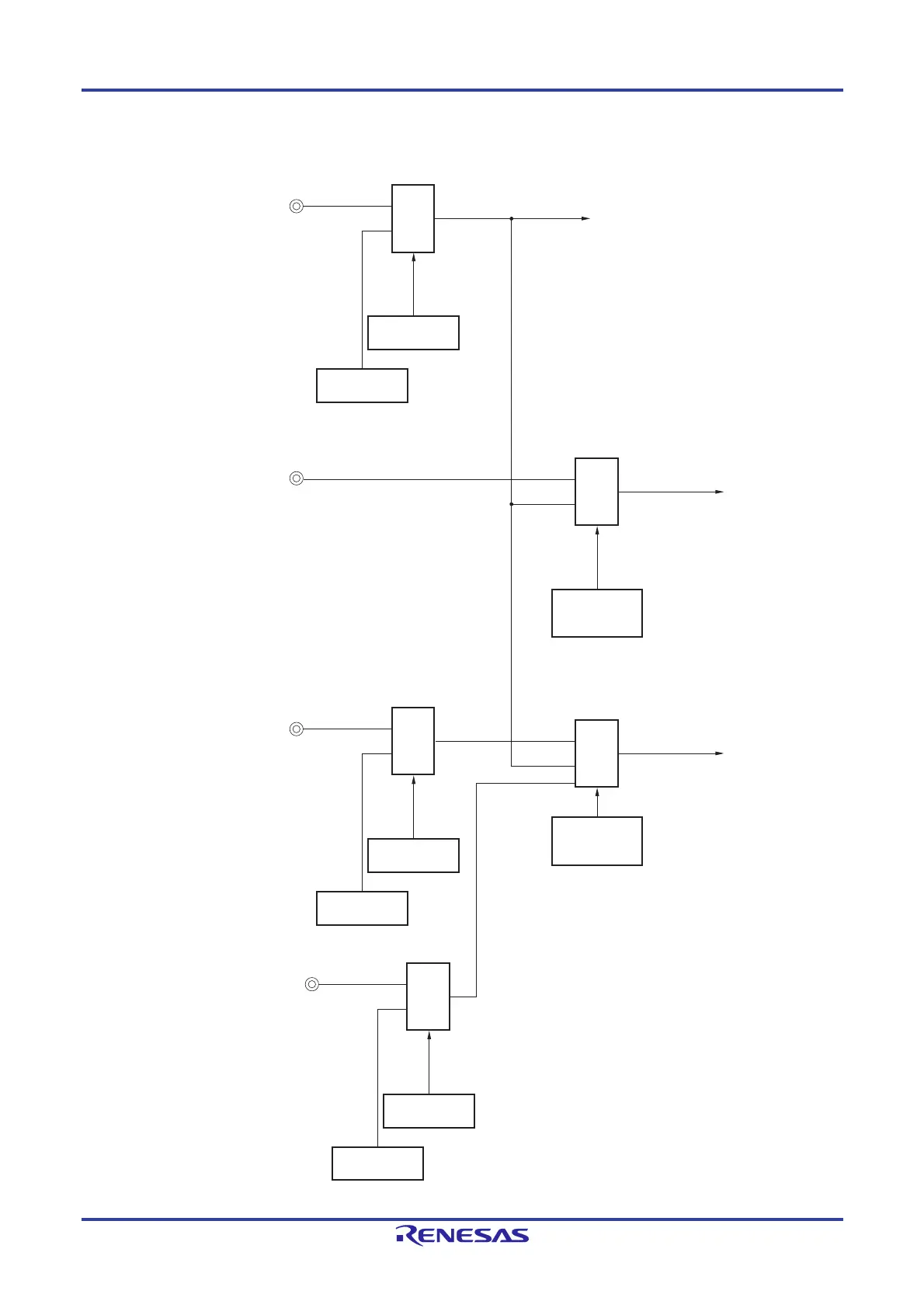

Figure 15-142. Port Configuration for Manipulating Reception of LIN
Remark ISC0: Bit 0 of the input switch control register (ISC) (See Figure 15-18.)
RXD0 input
INTP0 input
Channel 7 input of
timer array unit 0
P16/TI02/TO02/TRDIOC1/
SI00/SDA00/RXD0/TOOLRXD
P137/INTP0
P120/ANI25/TI07/TO07/TRDIOD0/
SO01/INTP4
Port input
switch control
(ISC0)
<ISC0>
0: Selects INTP0 (P137)
1: Selects RxD0 (P16)
Timer input
select control
(TIS1)
Port mode
(PM16)
Output latch
(P16)
<TIS17, TIS16>
00: Selects TI07 (P120)
01: Selects RTC1Hz (P15)
10: Selects RxD0 (P16)
11: Setting prohibited
Selector
Selector
Selector
Selector
Port mode
(PM120)
Output latch
(P120)
P15/TI05/TO5/TRDIOA1/
(TRDIOA0)/(TRDCLK0)/SI00/
TXD0/TOOLTXD/RTC1HZ
Port mode
(PM15)
Output latch
(P15)
Selector
